Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: CE / ISO
Model Number: HBJ-20
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 5000~6000 / Set
Packaging Details: Package into container directly
Delivery Time: 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 Sets per month
Name: |
2T Height Adjustment Welding Positioner |
Table Diameter: |
1200mm |
2 Axies: |
Rotation & Tilting |
Height Adjust: |
400 Mm |
Control Way: |
Hand Control Box & Foot Pedal |
Certificate: |
CE / ISO |
Lift Way: |
Manual Bolt Fixed |
Product: |
Pipe Welding Positioners |
Name: |
2T Height Adjustment Welding Positioner |
Table Diameter: |
1200mm |
2 Axies: |
Rotation & Tilting |
Height Adjust: |
400 Mm |
Control Way: |
Hand Control Box & Foot Pedal |
Certificate: |
CE / ISO |
Lift Way: |
Manual Bolt Fixed |
Product: |
Pipe Welding Positioners |

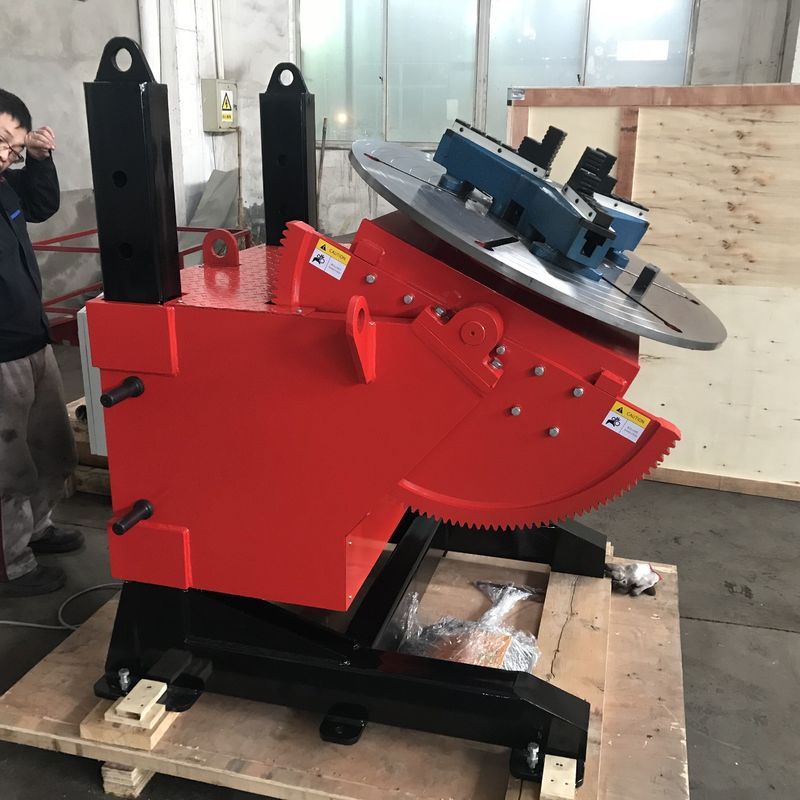

2T height adjustment Pipe welding positioner with 600mm 3 jaw chucks to Brisbane
2T height adjustment welding positioner is ready for Brisbane.
Height Adjustment Pipe Welding Positioners Details info
1. With 415V voltage to AUS Brisbane market.
2. Load capacity 2 Ton for work piece position and welding.
3. Remote hand control box to control the rotation and tilting.
4. Height adjustment welding positioner for large shape work piece.
5. With 600mm ranges 3 jaw chucks for work piece holding.
6. Tilting angle 0~90 degree or 0~120 as request.
7. CE marks supported to European market if available.
8. All service of welding positioner is from Wuxi Success Machinery Equipment Co., Ltd
Pipe Welding Positioners Specification
| Model | HBJ - 10 | HBJ-20 | HBJ-30 | HBJ-50 | HBJ-100 |
| Max Capacity | 1 T | 2 T | 3 T | 5 T | 10 T |
| Table Diameter (mm) | 1000 | 1200 | 1400 | 1500 | 2000 |
| Rotation Power (kw) | 1.5 | 3 | 3 | ||
| Rotation Speed (rpm) | 0.05 - 0.5 | 0.05-0.5 | |||
| Tilting Power (kw) | 1.1 | 1.5 | 3 | 3 | 4 |
| Tilting Angle (°) | 0 - 90 | ||||
| Tilting Speed (kw) | 0.14 | 0.14 | |||
| Option: | □ Foot Pedal □ Wireless Control □ Tilting Angle 120° | ||||
Noted: Door to door delivery is available.
Details Control System And Brand
1. Inverter is from Danfoss Brand.
2. Motor is from CE Invertek Brand.
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider.
5. Hand control box and foot pedal are all available.
Pipe Welding Positioners Competitive Advantage
1. All our equipments have passed CE test and get the CE certificates.
2. PLC control is available to control the tilting angel.
3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.
Work Site
