Exported Red Color Self Aligning Heavy Duty Roller Stand Beds With 380 / 550v Voltage

large.img.alt
small.img.alt small.img.alt

Large Image :  Exported Red Color Self Aligning Heavy Duty Roller Stand Beds With 380 / 550v Voltage

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Detailed Product Description
Name: Pipe Welding Roller Load Capacity: 30t
Adjust Way: Self Aligning Voltage: 380/550v
Application: Pipe Welding Type: Tank Turning Rolls
Wheel Material: Customized In PU/STEEL/RUBBER Motor Power: 2*1.5kw
Control Way: Hand Box&Foot Pedal
High Light:

pipe stands welding

,

pipe stand rollers

Red Color Self Aligning Heavy Duty Roller Stand Beds With 380 / 550v Voltage

30T Self-aligning Pipe Welding Roller /Welding Roller Beds/Tank Turning Rolls
WELDSUCCESS PRODUCTS.pdf

Self aligned tank turning rolls adjust the wheel centerline setting automatically when the vessel is lowered into place.And this type welding rollers can make set-up and alignment quick and easy.

Brief Description:



1. One drive piece roller & one idler piece roller are packaged together as one set for sale.
2. Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3. Self adjustment for different diameter vessels without manual adjust, more convenient.
4. Stepless adjustable speed of the driven part with rotation speed 100~1000mm/min .
5. Top-class electronic components from Schneider to ensure long time using life.
6. 100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.


Here Below is 30t Self-aligning Tank Turning Rolls Specification:



Model HGZ-30
Load capacity - Drive 15 tons maximum
Load capacity - Idler 15tons maximum
Load capacity - Set 30 tons maximum
Rotation capacity  30 tons maximum
Vessels diameter Min. 500mm ~ Max.4000mm
Rotation speed 100~1000 mm/min VFD
Rotation power 2*1.5kw with fan cooling
Roller wheels PU (Polyurethane wheels)
Control way Remote hand control + Foot pedal
Input Voltage 110V ~ 575V 3 Phase 50/60Hz



Pipe Welding Roll Usage:

1.Medium range series has been engineered for the effective positioning of long cylindrical work-pieces.
2. Oil tanks, pressure vessels, and pipe are applications that utilize turning rolls.
3. Long objects that are not cylindrical may be adapted with the aid of custom designed support rings.
4. We design incorporates overload discs on each wheel that prevent excessive loads from damaging the tires.


Pipe Welding Turning Rolls Brand:


1. Tank turning rotator Inverter is from Taida / Yaskawa Brand.
2. Rotating welding turning roll Motor is from UK Invertek Brand.
3. Pipe welding rollers Reducer is from Cable. Made in China.
4. Welding roller beds Electric system is from Schneider / Siemens.
5. CE cetification.

Applications


1. Welding rotators are widely use to support the tank for rotation and make the seam welding conveniently.
2. We also have the movable model welding rollers for several single pipe butt welding together.
3. Hydraulic fit up welding rollers ,anti creep rotator and sand blasting rollers are all available.
4. Welding column boom used togeher with welding rotator for large diameter tank seam welding.
5. Wind towers line,offshore pipe wleding,heat exchanger tank and pressure vessels etc. Market.


Detail Images:

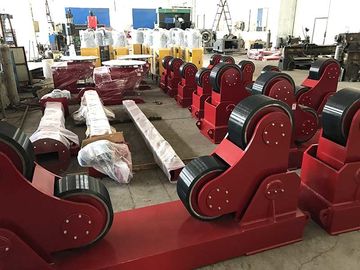

Exported Red Color Self Aligning Heavy Duty Roller Stand Beds With 380 / 550v Voltage 0



DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
