Home > products > Tank Turning Rolls > Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators

Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HGK - 30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 10 Sets Per Month

Get Best Price
Highlight:

pipe welding rollers

,

pipe turning rollers

Load Capacity:
30 T
Type:
Bolt Adjustment
Color:
Red/Black
Name:
Tank Turning Rolls
Application:
Pipe Welding Roller Stand
Wheel Material:
PU
Other Name:
Pipe Welding Rotator
Apply:
Pressure Vessels, Wind Tower
Options:
Conventioanl Pipe Welding Rolls
Voltage:
Customized
Design:
New Design
Load Capacity:
30 T
Type:
Bolt Adjustment
Color:
Red/Black
Name:
Tank Turning Rolls
Application:
Pipe Welding Roller Stand
Wheel Material:
PU
Other Name:
Pipe Welding Rotator
Apply:
Pressure Vessels, Wind Tower
Options:
Conventioanl Pipe Welding Rolls
Voltage:
Customized
Design:
New Design
Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators

Red/Black 30Tons Tank Turning Rolls, PU Wheel ,Bolt Adjustment Pipe Welding Rotators

WELDSUCCESS PRODUCTS.pdf



  • The conventional welding rotator series includes the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.
  • Conventional welding rotator can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.
  • Double-motor driven, the roller driver adopt cycloidal planetary gear reducer or worm reduction gear mode.
  • According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel;
  • It can joint control with other equipments.
  • The conventional welding rotator is mainly used for the welding,polishing,painting and assembly of cylindrical roller shell. It also can assembling or using together with other tooling for the cone inequality diameter rotary.
  • Welding rotator is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding welding repair and so on industries.

30Tons Tank Turning Rolls Prarameter

Model CR-30
Load capacity - Drive 15 tons maximum
Load capacity - Idler 15tons maximum
Load capacity - Set 30 tons maximum
Rotation capacity 30 tons maximum
Vessels diameter Min. 500mm ~ Max.4800mm
Rotation speed 100~1000 mm/min VFD
Rotation power 2*1.1kw with fan cooling
Roller wheels PU (Polyurethane wheels)
Control way Remote hand control + Foot pedal
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate CE approval

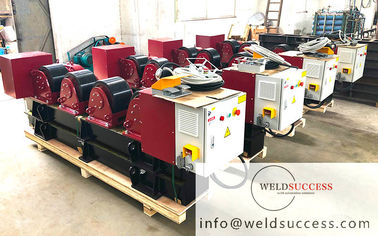

Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators 0



Pipe Welding Rotator Details Parts Brand

  • Inverter is from Danfoss / Yaskawa
  • Motor is from Invertek
  • Reducer is from China brand
  • Electric system is from Schneider

Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators 1



Application:

Pressure vessel;
Pipe manufacturing industries
Wind power fabrication
Chemical & fuel storage tank fabrication

Any heavy cylindrical job



Attention More



1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning pipe welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Electric and Control Details:



Wind Tower Use Pipe Welding Rotator / Bolt Adjustment Pipe Welding Rotators 2







PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
