Conventional Bolt Adjustment Tank Turning Rolls 5t Pipe Welding Rotator

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HGK - 05

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

tank turning rolls bolt adjustment

,

5t tank turning rolls

,

5t pipe welding rotator

Max Capacity:
5T
Adjust Way:
Conventional
Name:
Welding Rotator
Control Way:
Hand Control Box / Foot Pedal Control
Type:
Tank Turning Rolls
Turning Speed:
100 - 1000 Mm/min / Digital Display
Motor Power:
Double Motor / 2 * 4 KW
Cable Length:
10 M / Wireless Control Box Available
Color:
Red Customized
Application:
Pipe Tank Welding
Max Capacity:
5T
Adjust Way:
Conventional
Name:
Welding Rotator
Control Way:
Hand Control Box / Foot Pedal Control
Type:
Tank Turning Rolls
Turning Speed:
100 - 1000 Mm/min / Digital Display
Motor Power:
Double Motor / 2 * 4 KW
Cable Length:
10 M / Wireless Control Box Available
Color:
Red Customized
Application:
Pipe Tank Welding
Conventional Bolt Adjustment Tank Turning Rolls 5t Pipe Welding Rotator

New Design Conventional Bolt Adjustment Tank Turning Rolls, 5T Pipe Welding Rotatos



Tank Turning Rolls Beds Description

1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P
3. Roller : Rubber / Steel / PU (Polyurethane)
4. Original : Our Factory , Wuxi China
5. Condition : New / Fully CE supported

6. All the motors and reducer with anti-damage protect cover

7. Tank turning rolls produced by Wuxi Success Machinery Equipment Co., Ltd



Attention please

1. Normally under 60T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning tank turning rolls / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Conventional Tank Turning Rolls To Eurppean Market using Specification

Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment

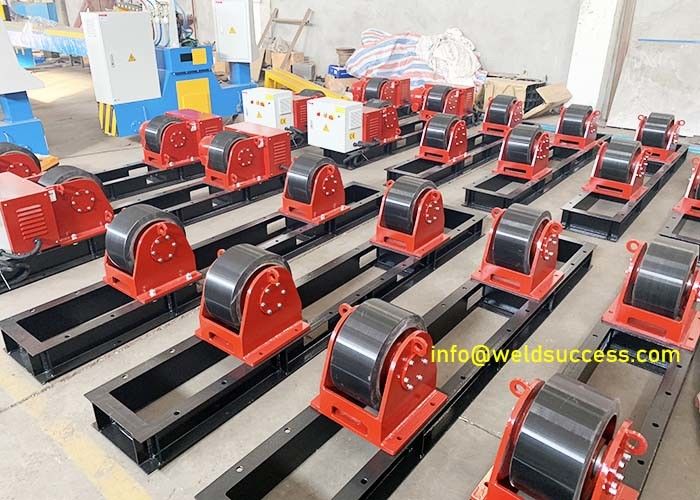

Conventional Bolt Adjustment Tank Turning Rolls 5t Pipe Welding Rotator 0





Other types option

1. We also supply the self-alignment tank turning rolls and the anti-drift types tank turning rolls.
2. Bolt adjustable tank turning rolls can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable tank turning rolls is also available.
4. The roller is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used tank turning rolls is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.



Details parts brand

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system



Transportation

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service

1. We provide 12month guaranty period for the whole tank turning rolls quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Installation

1. Normally the tank turning rolls shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
