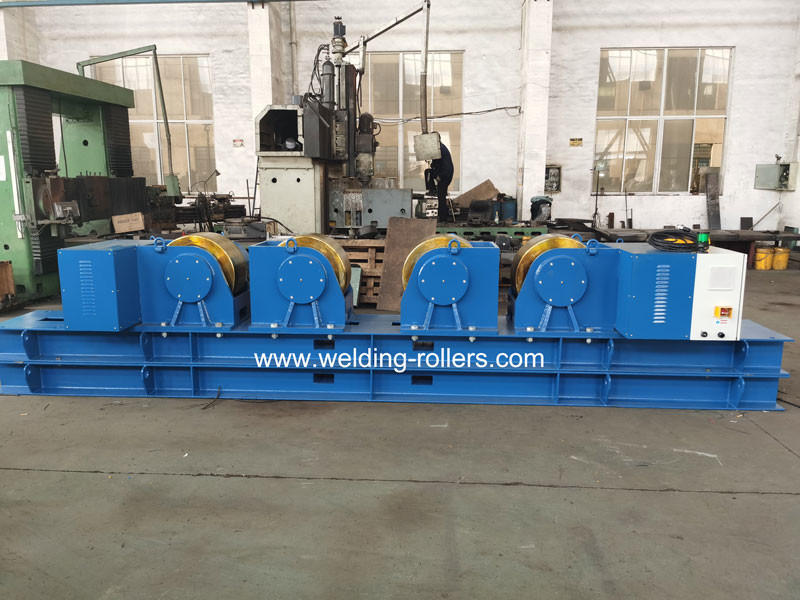

200 Ton Conventional Pipe Welding Roller With Steel Wheels For Wind Tower

Name: 200 Ton Conventional Pipe Welding Roller With Steel Wheels For Wind Tower
Brand: Weldsuccess
SKU: HGK-200
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (189 reviews)

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HGK-200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                200 Ton Conventional Pipe Welding Roller, Welding Roller With Steel Wheels, Wind Tower Tank Turning Welding Rollers


Turning Capacity:	200 Ton Maximum	Idler Load Capacity:	100 Ton Maximum
Drive Load Capacity:	100 Ton Maximum	Vessel Diameter:	800~5000 Mm
Roller Size:	Ø600*645mm	Motor Power:	2*4KW
Speed Control:	Variable Frequency Driver	Control System:	Foot Pedal 15m Cable
Voltage:	380 V ±10 % 50 Hz 3Phase

Turning Capacity:	200 Ton Maximum
Idler Load Capacity:	100 Ton Maximum
Drive Load Capacity:	100 Ton Maximum
Vessel Diameter:	800~5000 Mm
Roller Size:	Ø600*645mm
Motor Power:	2*4KW
Speed Control:	Variable Frequency Driver
Control System:	Foot Pedal 15m Cable
Voltage:	380 V ±10 % 50 Hz 3Phase

200 Ton Conventional Pipe Welding Roller With Steel Wheels For Wind Tower

Product Description:

1.The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.

2.It is the frame structure, scientific and reliable design.

3.Every motion part for equipment has the full lubricating system.

4.Double motors to ensure turing stably.

Features:

1. Both drive rolls are powered by a heavy duty direct gear drive and brake motor.

2. All of the gears and bearings are fully sealed and lubricated for long life and safety.

3. Polyurethane roller, Rubber Roller or steel roller are all available.

4. Remote control or Wireless control box with digital display of turning speed.

5. Other types of turning rolls like tank fit-up rolls, and self aligning welding rolls.

Technical Parameters:

Model	HGK-200
Turning Capacity	200 ton maximum
Drive Load Capacity	100 ton maximum
Idler Load Capacity	100 ton maximum
Adjust Way	Bolt adjustment
Motor Power	2*4KW
Vessel Diameter	800~5000 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	Steel
Roller size	Ø600*645mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 15m cable
Color	Customized
Warranty	One Year

Applications:

1. Welding tank turning rolls are widely use to support the tank for rotation and make the seam welding conveniently.

2.We also have the movable model welding rollers for several single pipe butt welding together.

3. Hydraulic fit up tank turning rolls ,anti creep rotator and sand blasting rollers are all available.

4. Welding column boom used together with welding rotator for large diameter tank seam welding.

5. Wind towers line,offshore pipe wleding,heat exchanger tank and pressure vessels etc. Market.

Support and Services:

1. We provide one year guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. All of our equipments will be packaged in wooden case before delivery.

2.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.

3.Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

4. All boxes are labeled with the product name and number, and the shipper's contact information.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Tank Turning Rolls.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
