VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: LHC 1515

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case / Package in Container Directly

Delivery Time: 25 Days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 3 Sets Per Month

Get Best Price
Highlight:

column and boom manipulator

,

column boom welding machine

Name:
Welding Manipulator
Lifting Stroke:
1500 Mm
Retracting Stroke:
1500 Mm
Control Way:
Hand Control Box
Type:
Fixed And Rotation
Certificate:
CE
Other Name:
Welding Column Boom
Name:
Welding Manipulator
Lifting Stroke:
1500 Mm
Retracting Stroke:
1500 Mm
Control Way:
Hand Control Box
Type:
Fixed And Rotation
Certificate:
CE
Other Name:
Welding Column Boom
VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding

VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding



Welding Manipulator Description

1. Beam up / down  by motor.

2. Beam ahead / back by motor (The speed may adjust by VFD).

3. Column revolved by motor / hand column fixed on the ground.

4. Trolley move by motor.

5. You may choose : Cross slide by motor / hand,Oscillator,Flux recovery Machine and transportation system,Welding power etc..

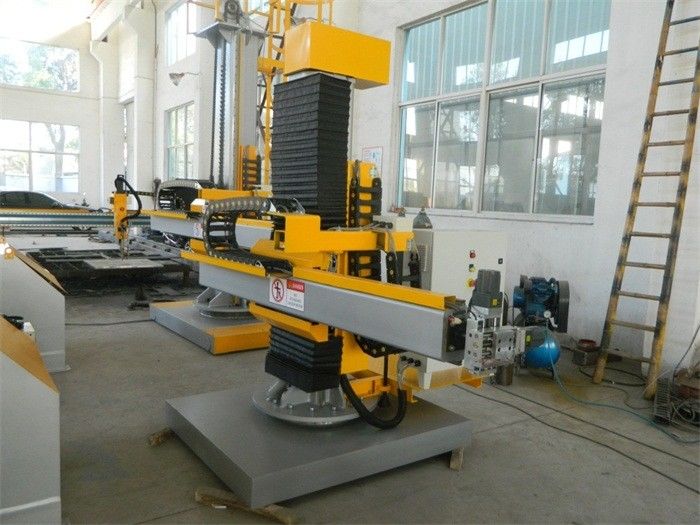

VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding 0



Here Below Is Welding Manipulators Specifications

Model

LHC-1515

LHC-3040

LHC-4050

LHC-5060

Effective Vertical Lifting Stroke of Boom (mm)

1500

3000

4000

5000

Effective Horizontal Retracting Stroke of Boom (mm)

1500

4000

5000

6000

Boom Lifting speed (mm/min)

1

Boom Retracting speed (mm/min)

0.12-1.2

Column Rotation Angle (°)

□ Stationary                □ ±180°

Column Rotation Way (rpm)

□ Stationary       □ Manual       □ Motorized(0.1)

Trolley Traveling Way (mm/min)

 □ Stationary      □ Manual       □ Motorized(1.5/3)

Option :

□ Seam Tracker       □ Flux recovery machine

   Welding Source   □ Chinese    □ Lincoln Brand



Welding Manipulator Productive Process

1. Cross-tuning system with motorized slide can realize welding torch in three-dimensional adjust,which satisfy welding torch adjust for welding longitudinal and circle seam,200mm adjust range can make the easy operation.

2. Control roller has eccentric shaft, which can decrease clearance between roller and rail.

3. Column boom manipulator adopts a total-sealing oil immersion lubricating mode to help keep off dust, slag, and many other impurities.

4. Control box includes control box and pendant ,interface with positioner and rotator also prepared.



VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding 1



Cross Column And Boom Welding Manipulator Feature

1. Auxiliary welding manipulator for auto welding center.

2. Automatic welding column boom can be adopted with various welding power.

3. Stretching of cross boom adapts AC frequency converter stepless speed control.

4. Head equipped with electric cross slides, can adjust position of welding .

5. Chain break-resistant and anti-slip device in boom to guarantee safety.

6. Braking device can ensure column work in safe environment.

7. Automatic flux feeding, recovering devices, wire feeder device, working platform and  chair ( Optional ).



After-sale service For Welding Manipulators

1. We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment

for free. We also provide a long term free technical advisory services and technical  consults service.

2. We can also provide installation and training if needed.



VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding 2



When you send us the inquiry, please advise us your single tank diameter and length.
