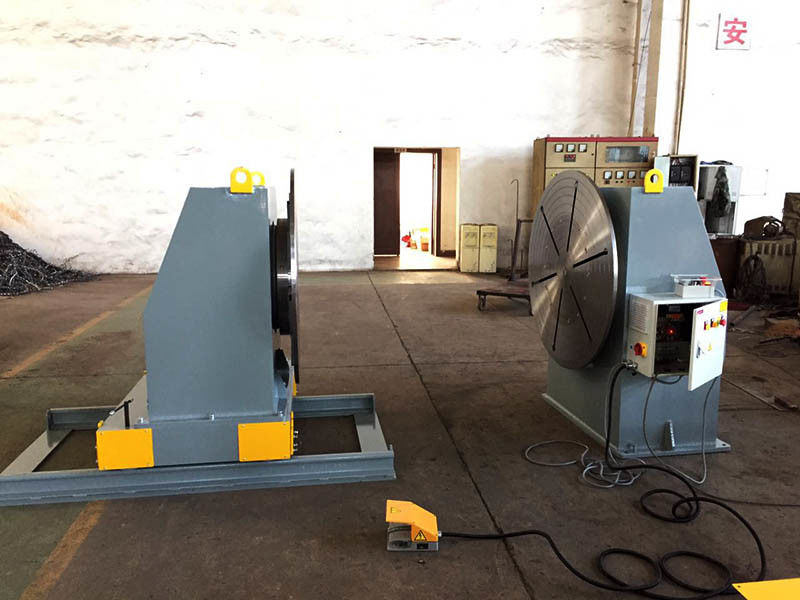

Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation

Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation
Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation

Large Image :  Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: STWB - 30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance,, T/T, L/C
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 3000 KG Name: Pipe Welding Positioner
Table Diameter: 2000 Mm Package: Wooden Case
Voltage: 380V / As Per Required Clamps Way: Welding Chuck / Design
Application: 360° Pipe Turning Welding Type: Head Tail
High Light:

rotary welding positioner

,

tube welding positioner

Head Tailstock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation

WELDSUCCESS PRODUCTS.pdf



Pipe Welding Positionrs Description

1. The Headstock pipe welding positioners is generally powered and the Tailstock is free-wheeling.
2. Long complex structures can be turned to make the work execution easier for the welder.
3. The same as welding rotator & postioner, headstock and tailstock rotatry welding

positioners can be used for a variety of parts and suitable for long objects.
4. Typically a Head & Tailstock Welding Positioner is used for long rectangular shapes that

must be supported from both ends.
5. Both fixed height rotation centerline and power elevating models are available for

ergonomic placement of the weldment.
6. Head stock tail stock positioners capacity ranges up to 100 Tons and various flexibility in

job handling.



Pipe Welding Positioners Detail Parameters

Model

STWB-05

STWB-20

STWB-30

STWB-50

Max Capacity

500 kg

2T

3T

5T

Table Diameter (mm)

1000

1500

2000

2200

Turning Speed (mm/min)

0.09-0.9

0.05-0.5

Lifting stroke (mm)

According to your request. (1200/1500)

Speed Adjust / Control Way

Frequency stepless speed adjust / Wireless Control

Option :

 Light-duty with larger table diameter is available.



Marks
1. If your work piece is pipe, please advise us the pipe diameter for the welding chuck model.
2. If your work piece is too long or height , please advise us to adjust the table center height .
3. If you want the clamps for your special work piece , then please advise us the details drawings.


Applications

1. Pipe to pipe (or Elbow or Flange);

2. Shaft, dish, cylinder, etc welding;

3. Framework of car, digger arm, loading machine, digger machine;

4. We also have the columns lifting model for reference. (video available)



Workpiece welding way

1. We have 3 jaws or 4 jaws chucks for chosen.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.

4. Using together with the auto welding robot.

5. Just advise me yours requestion for detail proposal.



After sale service

1. All our pipe welding positioners have passed CE test and get the CE certificates.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. Fully installed before package and delivery, so its easy for your to installation at your work shop.

4. Door to door installation service is also available if customer needed.

5. We provide 12month guaranty period for the whole machine quality.



Head Tail stock Pipe to Pipe Welding Positioners For 360° Tilting / Rotation 0



JUST CONTACT US FOR DETAIL QUOTATION.
