Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length

China Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length supplier
Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length supplier Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length supplier

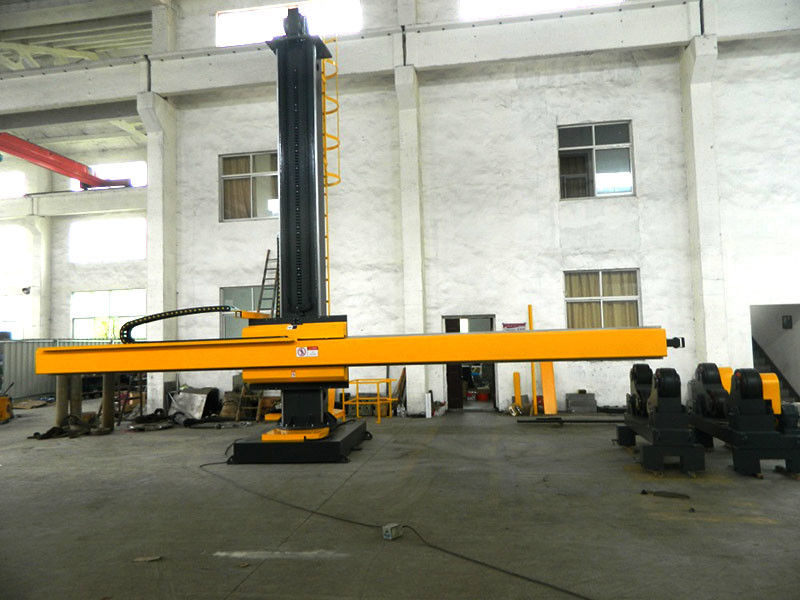

Large Image :  Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 8050

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Contact Now
Detailed Product Description
Lifting Stroke: 8000 Mm Retracting Stroke: 8000 Mm
Type: Weldsuccess Cloumn And Boom Travelling Way: Motorized Travelling
Options: Flux Recovery Machine Welding Source: Lincoln DC-1000
Certificate: CE Delivery Time: 25 Days
Name: Welding Manipulator Turn Around: ±180°

Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length



Welding Column And Boom More Detail WELDSUCCESS PRODUCTS.pdf

1. Tank range : 8000mm diameter Maximum..

2. Voltage : 380V / 415V / 480V / 575V 50/60Hz 3Phase

3. Motorized moving and rotation.

4. Flux Recovery Mahcine / Seam Tracker / Welding Seam Monitor

5. Working with the welding rotator together to relize fully auto welding.

6. Original manufacturer supply the equipment & installation service.

7. Welding column boom from Wuxi Success Machinery Equipment Co., Ltd



Welding Column And Boom More type available

Model

LHC-4040

LHC-5050

LHC-6060

LHC-8080

Effective Vertical Lifting Stroke of Boom (mm)

4000

5000

6000

8000

Effective Horizontal Retracting Stroke of Boom (mm)

4000

5000

6000

8000

Boom Lifting speed (mm/min)

1

Boom Retracting speed (mm/min)

0.12-1.2

Column Rotation Angle (°)

□  Stationary             □  ±180°

Column Rotation Way (rpm)

□ Stationary    □ Manual    □ Motorized(0.1)

Trolley Traveling Way (mm/min)

   □ Stationary    □ Manual    □ Motorized(1.5/3)

Option :

 □ Seam Tracker     □ Flux recovery machine

   Welding Source  □ Chinese   □ Lincoln Brand



Welding Column And Boom Description

1. There three type of structures: fixed, fixed with rotation, and movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to welding gun
4. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower and other lines



Welding Column And Boom Applications

1. To weld the inner seam and outside seam automatically.

2. Auto Flux recovery machine / seam teacker / monitor are all available.

3. Movable model is available.



Welding Column And Boom Advantages

1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.



Welding Column And Boom Production Details

1. There is safe ladder behind the column for maintenance of equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

5. Sand blasting treatment to main welding parts before painting.


Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length

Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length

Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length



Welding Column And Boom Installation

1. Normally all the equipments will disassemble and packaged in Container.

2. We will supply you all the detail installation drawings for your reference.

3. Our engineers also supply door to door installation service.
