5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels

China 5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels supplier
5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels supplier 5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels supplier

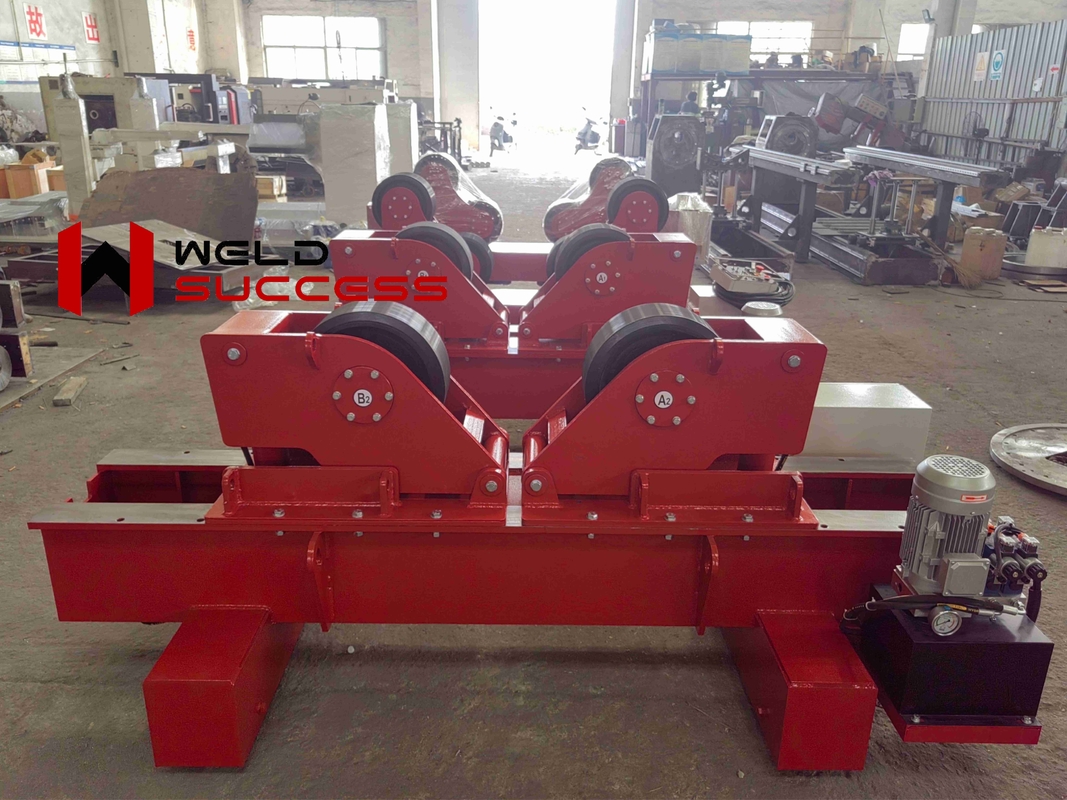

Large Image :  5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Max Capacity: 20 T Roller Material: Rubber / Solid Metal
Name: Tank Turning Rolls Wheel Material: PU
Type: Pipe Welding Rollers Voltage: 380 V 3-ph / Customized
Warranty: One Year Working Range: 500 -4500 Mm

5T - 40T Tank Turning Rolls , Pipe Welding Rollers For Pressure Vessels



Description

1. We provide a selection of conventional and self-aligning tank turning rolls, in addition we have fit up model tank turning rolls.

2. We inventory sizes of welding turning rolls from 2 tons up to 500 tons.

3. We sell complete tank shop turning roll sets and extra idlers rolls.

4. Other types of tank turning rolls like tank fit-up rolls, and self aligning welding rolls often called  constant center line tank turning rolls.

5. Our factory trained service technicians are available to repair or rebuild your tank turning rolls.



Delivery Package

1. One set power roller / One set idler roller/ Electric control system

2. Voltage : 380V 50Hz 3P or as per requirment

3. Control Way : Hand Remote Control Box / Foot Pedal (Footswitches)

4. Package Way : Wooden Case  or directly package in container

5. CE certificates supported with one year warranty of the tank turning rolls.



Specification

Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment

5T - 40T Tank Turning Rolls , Fit Up Welding Rotator For Pressure Vessels



Applications

1. The roll to roll distance can be quickly and accurately adjusted to accommodate a wide range of work-piece diameters.

2. This model with two rollers are all moveable to the desired position according the work-piece diameter and then locked into place with the bolt.

3. The control voltage used in the pendent, foot control and switches is stepped down to 24 volts DC and fused at 0.5 amps for greater operator safety.



Customized

1.We are an professional manufacturer who specializes in welding equipment about 15 years,

we have a strong design team ,so any nor-standard specification can be customized.



Transportion

1. Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,

if it is allowed ,we also can take train ,its according to real condition.



Warranty

1. The model HGK20 tank turning rolls are manufactured to world class quality and come with a 1 year warranty.  We maintain a complete parts inventory available for immediate shipment if needed.



Attention please

1. Both drive rolls are powered by a heavy duty direct gear drive and brake motor.

2. All of the gears and bearings are fully sealed and lubricated for long life and safety.

3. Both the drive and idler rolls are heavy duty iron core with extra thick urethane for long life and traction.  The rolls will not mar or scratch materials such as stainless steel or aluminum.



DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
