Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: CE / ISO / CO
Model Number: HBJ - 30
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/A
Supply Ability: 3 Set Per Month
Max Capacity: |
6500 Lbs |
Name: |
Welding Turn Table |
Package: |
Wooden Case |
Voltage: |
220V / 380V / 400V / As Per Required |
Color: |
As Customers Requirment |
Delivery Time: |
30 Days / 4 Sets |
Application: |
Rotary And Tilting |
Tilting Angle: |
0 - 90 / 0 - 120 |
Max Capacity: |
6500 Lbs |
Name: |
Welding Turn Table |
Package: |
Wooden Case |
Voltage: |
220V / 380V / 400V / As Per Required |
Color: |
As Customers Requirment |
Delivery Time: |
30 Days / 4 Sets |
Application: |
Rotary And Tilting |
Tilting Angle: |
0 - 90 / 0 - 120 |

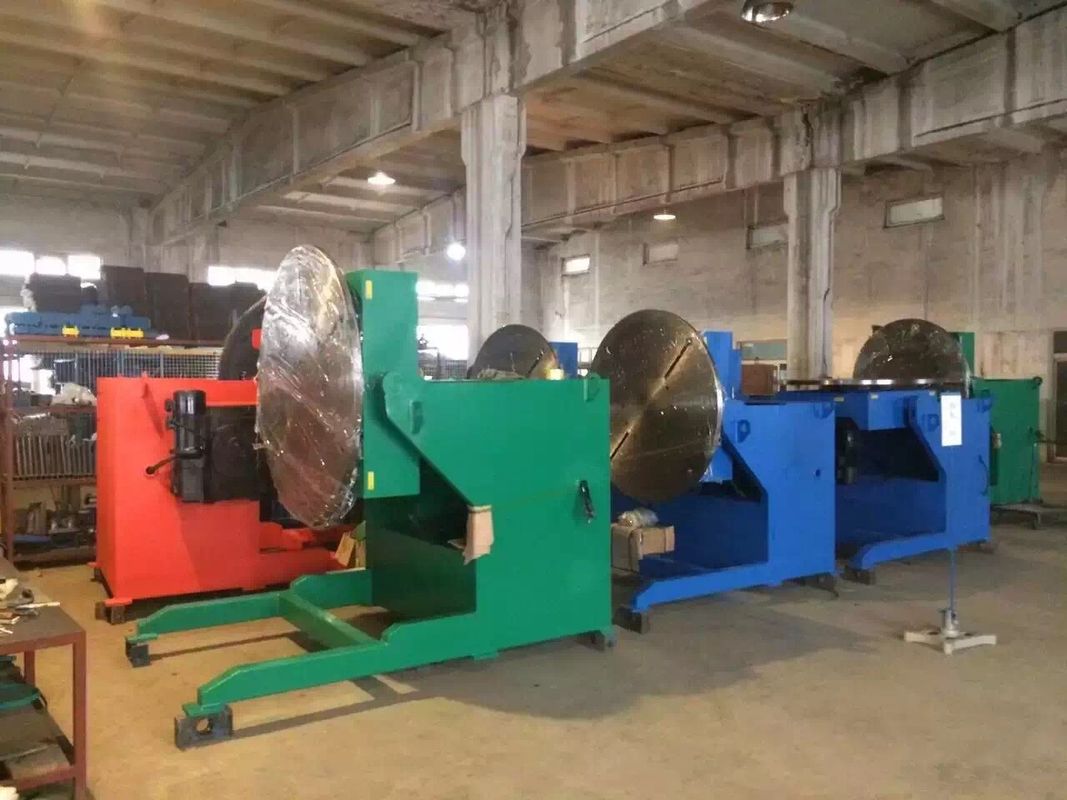

90 Degree Tilting Angle Welding Turn Table 3T Welding Positioners
The welding turn table positioner, also is called welding positioning equipment, mainly used for some special structures, construction machines, small round workpieces, and more. And it mainly consists of a working table, turning device, overturning device, electricity-conducting device, stander and electric cabinet. Its working table is driven by the turning device with 6 T-style slots to ensure workpieces strictly fixed on the working table.
Its turning device is mainly composed of a motor, a speed reducer, and a swing set. And its overturning device mainly consists of an electric motor, cycloidal gear speed reducer, worm wheel speed reducer, and semicircular gear.
We can design and produce welding positioners in accordance with the specific requirements of our clients.
Welding Turn Table Brif Description
1. Push button pendent control for power tilt and table rotation.
2. For and Rev foot control for table rotation.
3. Machined table with centering grooves.
4. Extra heavy worm gear drives and construction.
5. Tilt gear shaft supported at each end for long life.
6. With 360 degree table rotation CW & CCW with power on indicator light.
Specification
|
Model |
HBJ - 30 |
HBJ - 50 |
HBJ - 100 |
HBJ - 150 |
HBJ - 200 |
|
Max Capacity |
3 T |
5 T |
10 T |
15 T |
20 T |
|
Table Diameter (mm) |
1400 |
1500 |
2000 |
2200 |
2500 |
|
Rotation Power (kw) |
1.5 |
3 |
3 |
3 |
4 |
|
Rotation Speed (rpm) |
0.05-0.5 |
||||
|
Tilting Power (kw) |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
Tilting Angle (°) |
0 - 120 |
||||
|
Tilting Speed (kw) |
0.23 |
0.14 |
|||
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 135° |
||||
Application
1. Ranging from pipe spooling to positioning of very large cumbersome parts.
2. Enhance productivity when welding pipe, shafts, wheels, elbows and other fittings
3. Welding turn table makes the workpiece in perfect position for welding via turning or tilting the work piece.
Competitive Advantage
1. Our welding roller Inverter is from Danfoss / Yaskawa
2. Our welding rotator Motor is from Invertek
3. Our Tank rolls Reducer is from China brand
4. Our welding Electric system is from Schneider
Packing things
1. Welding turn table (including machine frame, worktable, etc) 1set
2. Electric control system (including electric control cabinet,remote control box and foot
3. Technical documents (with manual book, conformity certificate, packing list, etc) 1set
4. Welding chuks if you ordered.
Installation and commissioning
1. Normally welding turn table is easy to installation, we will installtion well then package for delivery. Also we will supply you
all the details installation drawings.
2. If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
