Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBJ - 06
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance
Supply Ability: 5 sets per month
Max Capacity: |
600 Kg = 1300lbs |
Application: |
Tilting And Welding |
Tilting Angle: |
0 - 120 ° / Digital Display More Accurate |
Table Diameter: |
1000 Mm |
Rotation Speed: |
0.09 - 0.9 Rpm |
More Service: |
Wooden Case Package |
Name: |
Pipe Welding Positioners |
Max Capacity: |
600 Kg = 1300lbs |
Application: |
Tilting And Welding |
Tilting Angle: |
0 - 120 ° / Digital Display More Accurate |
Table Diameter: |
1000 Mm |
Rotation Speed: |
0.09 - 0.9 Rpm |
More Service: |
Wooden Case Package |
Name: |
Pipe Welding Positioners |

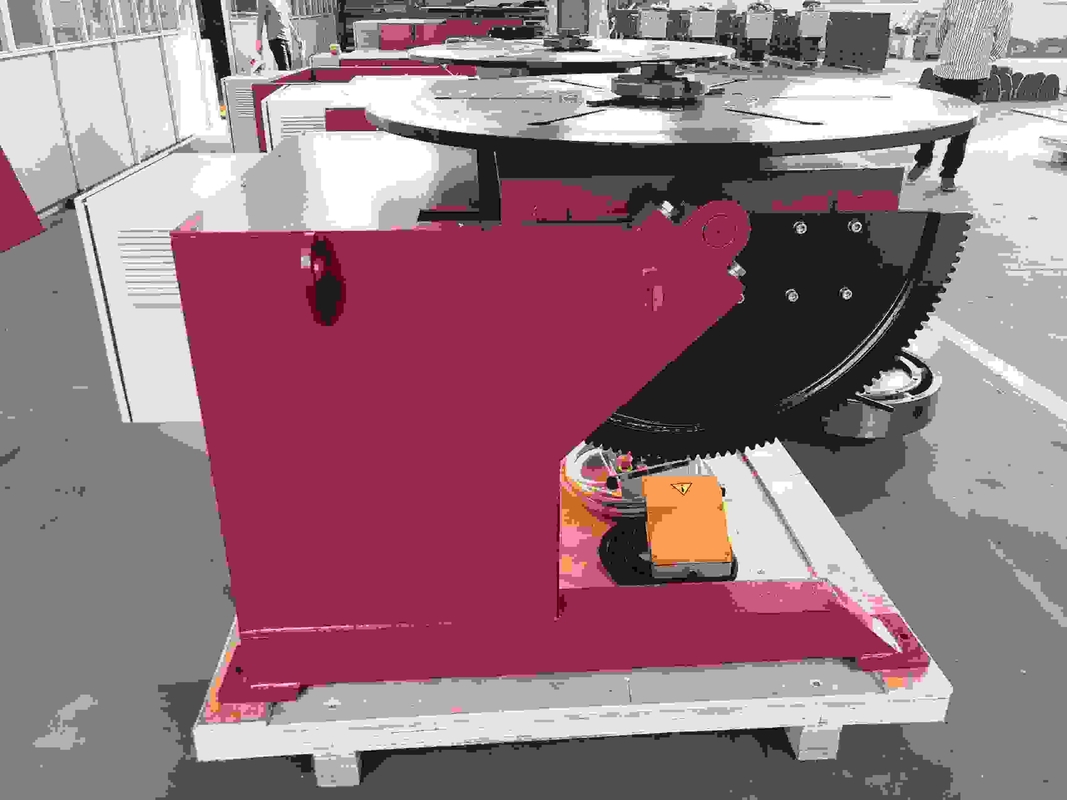

600kg Pipe Welding Positioners With CE Certificate Supported To European Market
Description/Overseas agent available
1. Pipe welding positioners package : Wooden case / Electric Control System
2. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P all available.
3. Tilting angle : 0 - 90 ° / 0 - 120 ° available.
4. Both electric box and hand control panel with the E-stop button.
5. Original : Factory , Wuxi China
6. Condition : New / OEM service available.
Pipe Welding Positioners Specifications
|
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
|
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
|
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
|
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
|
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
|
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
|
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
||||
Tilting And Rotary Pipe Welding Positioners Competitive Advantage
1. Pipe Welding Positioners is easy to get the perfect tilting angle via digital display showing.
2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
5. All control box with Emergency button.
Pipe Welding Positioners Details Parts Brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor with fully CE certificates
3. Cable / Shuntian Reducer is made in China
4. Schneider / Siemens electric system
5. Voltage is 380V 50Hz 3P , or reset as your required
6. All the pipe welding positioners with one year warranty
Clamps For Reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Special clamps can be designed according to your work piece detail drawings.
Transportation
1. Firstly , all of our pipe welding positioners will be packaged in wooden case before delivery.
2. Door to door delivery service is also available , but we have to know your detail address.
3. Seaway is the most common transportation way for oversea trading.
4. Depends on your location, combined transport by rail and sea is also an option.
5. Certainly railway transportation is also acceptable if it is the most suitable approach.
Certificate and Company Work Shop
1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. If you want door to door price, please advise us your detail adress.
4. WUXI SUCCESS MACHINERY EQUIPMENT CO.,L TD will supply you the best service.
Installation
1. Normally the pipe welding positioners shipped with fully installation packaged in wooden case.
2. Pipe welding positioners easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service.
4. We also supply the door to door delivery service if customers interested.
SO JUST SEND YOUR INQUIRY NOW.
