Product Details:
Payment & Shipping Terms:
|
| Max Plate Thickness: | 25 Mm | Max Coil Width: | 2500 Mm |
|---|---|---|---|
| Coil Speed: | 4 M/min | Motor Power: | 22 KW |
| Top Roll Diameter: | 280 Mm | Roor Diameter: | 440 Mm |
| High Light: | sheet rolling machine,Plate Bending Machine |
||

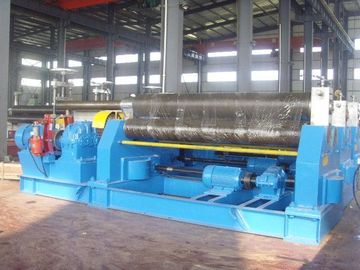

3 Roll Mechanical Plate Bending Machine , 25 - 30 mm Thickness Plate Rolling Machine
Cooperation way
1. Delivery time: 45 working days.
2. Payment way: T/T 30% in advance / 100% L/C at sight.
4. Warranty : 12 months.
5. Power voltage: 3 phase, 380V, 50Hz. If yours not,pls advise us yours.
1. This is three roller non symmetric rolling equipment. It is mainly used in the process of cold working in
which the sheets within the thickness of 20 mm can be bent into different diameter cylindrical tubes.
2. This equipment is three rolls machine, upper roller can adjust. It is used to bend different diameter of
steel into circle sharp. And it is widely used in chemical industry, ships industry and so on.
3. This is symmetric bending machine. The cylinder rolling is completed by the upper roller which pressing to the lower one and the mutual rolling.
4. The machine consists of two parts, the operation part and the transmission part which are welded at the whole bottom pallet. The operation part consists of left and right bearing housing, one upper rollers, two
lower rollers, lifting gears and some accessories. The lower roller is the main one, upper roller can be
adjusted at the height. The transmission part consists with the main motor, speed reducing motor and
other accessories.
Specification
|
Model |
W11-8-2000 |
W11-12-3000 |
W11-25-2500 |
W11-60-3000 |
|
Max.Plate Thickness |
8 |
12 |
20 |
60 |
|
Max.Coil Width (mm) |
2000 |
3000 |
2500 |
3000 |
|
Coil Speed (m/min) |
4 |
3.5 |
||
|
Main Motor power (kw) |
7.5 |
15 |
22 |
75 |
|
Option: |
□ Hydraulic Rolling □ Mechanical Rolling |
|||
Lubrication of Machinery
3. The upper roller orientation seat (one place, glycerol), each one shift to refill oil
4. Worm bearing (four places, glycerol), generally refill oil every 1,500 hours.
5. JZQ reductor should replace the oil after first three months and thereafter replace oil every half year.
6. Worm wheel (2 places, glycerol) users refill oil generally every 1,500 hours.
7. Transmission gear wheel (glycerol) users refill oil generally every 100 hours.
8. ZSYuctor should replace the oil after first three months and thereafter replace oil every half year.
9. Lifting ball bearing screw (two places, glycerol) users refill oil generally every 800 hours.
Delivery
1. Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option.
2. Certainly railway transportation is also acceptable if it is the most suitable approach.
