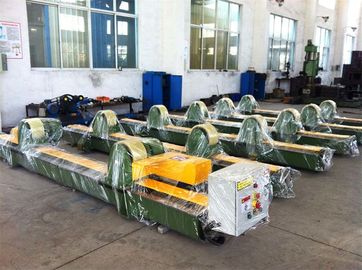

CE Supported Conventional Pipe Welding Rollers with Siemens Control System

large.img.alt
small.img.alt small.img.alt

Large Image :  CE Supported Conventional Pipe Welding Rollers with Siemens Control System

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 100 T = 220000lbs Adjust Way: Conventional Lead Screw
Product: Pipe Welding Rollers Control Way: Hand Control Box 5M Cable
Rorking Range: Tank Diameter 800 - 5000 Mm Delivery Time: 15 Days
Motor Power: Double Motors / 2 * 3 KW
High Light:

pipe stands welding

,

pipe stand rollers

Conventional Pipe Welding Rollers with Siemens Control System CE Supported



Pipe Welding Rollers Brief Description



1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P

3. Adjustment way : Lead Screw Manual
4. Pipe Welding Rollers Wheel: Rubber / Steel / PU (Polyurethane)
5. Original : Factory , Wuxi China
6. Condition : New



Attention please



1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning pipe welding rollers / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Pipe Welding Rollers Detail Parameters



Model

HGK-80

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

80 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

 450

 500

 700

 800

 900

Roller Width (mm)

 220

 280

  300

Working Range (mm)

   800-5000

1000-6000

 1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment





Details Parts Brand On Pipe Welding Rollers



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Pipe Welding Rollers Installation



1. Normally the pipe welding rollers shipped with fully installation packaged in wooden case.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service.

4. We also supply the door to door delivery service if customers interested.
