Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC-1515
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case / Package in Container Directly
Delivery Time: 25Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 3 Sets Per Month

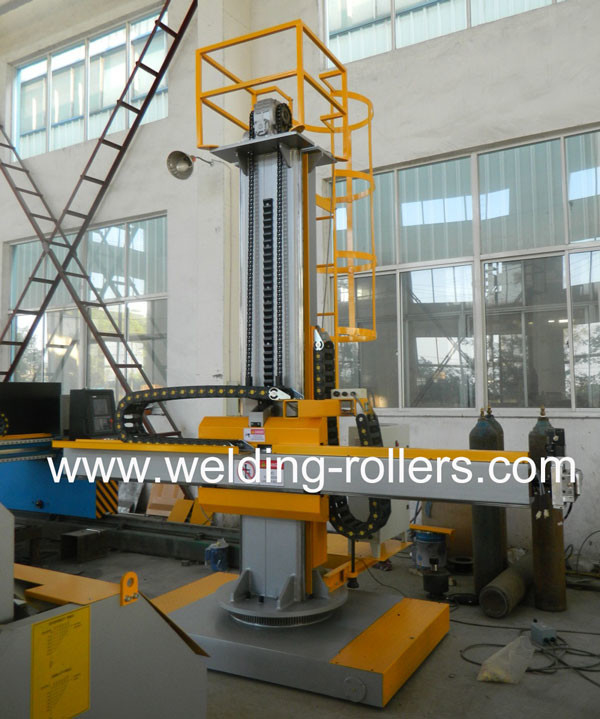

Name: |
Welding Column And Boom |
Lifting Travel: |
1500mm |
Shrink Travel: |
1500mm |
Rotation Way: |
Motorized Rotation |
Boom Vertical Travel Speed: |
1000 Mm/min |
Horizontal Boom Travel Speed: |
120-1200 Mm/min |
Used For: |
Welding Pressure Vessels |
Other Name: |
Welding Manipulator |
Warranty: |
1 Year |
Name: |
Welding Column And Boom |
Lifting Travel: |
1500mm |
Shrink Travel: |
1500mm |
Rotation Way: |
Motorized Rotation |
Boom Vertical Travel Speed: |
1000 Mm/min |
Horizontal Boom Travel Speed: |
120-1200 Mm/min |
Used For: |
Welding Pressure Vessels |
Other Name: |
Welding Manipulator |
Warranty: |
1 Year |
| Model | LHC-1515 | LHC-3030 | LHC-3040 | LHC-4050 | LHC-5060 |
|---|---|---|---|---|---|
Effective Vertical Lifting Stroke of Boom (mm) | 1500 | 3000 | 3000 | 4000 | 5000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 1500 | 3000 | 4000 | 5000 | 6000 |
Boom Lifting speed (mm/min) | 1000 mm/min | ||||
Boom Retracting speed (mm/min) | 120-1200 mm/min | ||||
Column Rotation Angle (°) | □ Stationary □ ±180° | ||||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | ||||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | ||||
| Warranty | 1Year | ||||
Option | □ Seam Tracker □ Flux recovery machine | ||||
Welding Source □ Chinese □ Lincoln Brand | |||||
A1: The brand name of this Welding Column And Boom is Weldsuccess.
A2: The model number of this Welding Column And Boom is LHC.
A3: This Welding Column And Boom is made in China.
A4: This Welding Column And Boom has ISO / CE / CO certifications.
A5: The minimum order quantity for this Welding Column And Boom is 1 set.
