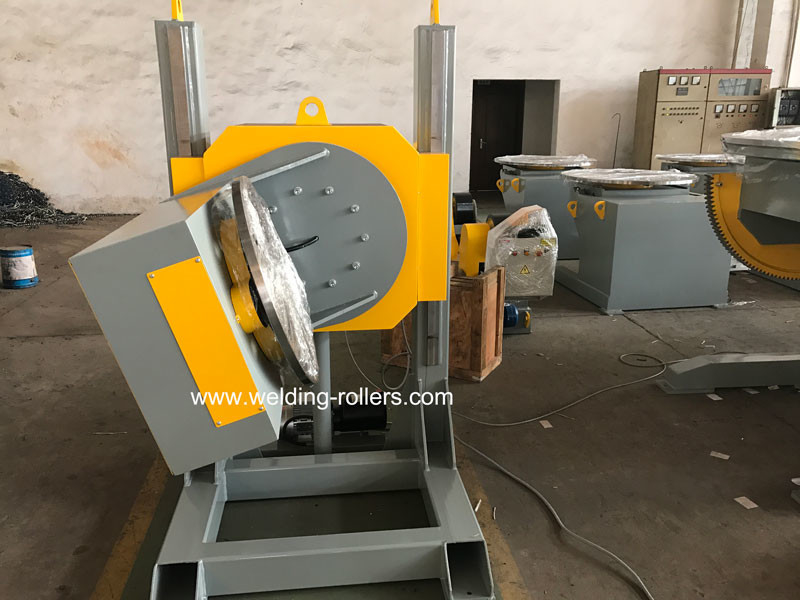

3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box
3 Ton L-Shape Welding Turning Positioner With Hand Control Box

3 Ton L-Shape Welding Turning Positioner With Hand Control Box

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: L-3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description
Highlight:

L-shape Welding Turning Positioner

,

3 Ton Welding Turning Positioner

,

Pipe Welding Positioner 1400mm

Max Capacity:
3 Ton
Type:
L-shape Welding Positioner
Table Diameter:
1400mm
Rotation Power:
1.5 Kw
Tilting Power:
2.2 Kw
Product Name:
Welding Turn Table
Tilting Angle:
±360 °
Certificate:
CE Approval
Dimensions:
Customizable
Warranty:
1 Year
Max Capacity:
3 Ton
Type:
L-shape Welding Positioner
Table Diameter:
1400mm
Rotation Power:
1.5 Kw
Tilting Power:
2.2 Kw
Product Name:
Welding Turn Table
Tilting Angle:
±360 °
Certificate:
CE Approval
Dimensions:
Customizable
Warranty:
1 Year
3 Ton L-Shape Welding Turning Positioner With Hand Control Box

Product Description:

1. L shape welding positioner with ±360 degree tilting angle and ±360 degree rotation angle.
2. Lifting stroke is as per request for different shape work piece.
3. You also can get the video via youtube for this machine.
3 Ton L-Shape Welding Turning Positioner With Hand Control Box 0

Features:

1. Turn the work piece to the perfect welding position for auto / manual welding.
2. Tilt the work piece can up to 360 °
3. It's easy to control via the remote hand control box or foot pedal
4. Hydrulic lifting modle positioner is also available.


Technical Parameters:
Model L-3

Loading Capacity

3 Ton maximum

Table diameter

 1400mm
Rotation power 1.5 kw
Tilting power 2.2kw
Rotation speed 0.05-0.5rpm
Tilting angle 360 degree
Titling speed 0.14
Control way

Remote hand control 8m cable

Foot pedal control

Foot pedal switch 6m cable.

Voltage

380V~480V 50/60Hz 3Phase

Certificates

CE

Warranty

One year

Color

Customized


Applications:

1. Rotation 360 degree and tilting 360 degree for different shape work piece.
2. Lifting type L shape welding positioner is also available if interested.
3. Remote hand control and foot pedal control all available.
4. European standard work manual and CE certificates are all supported.



Support and Services:

1. All our equipments have passed CE test and get the CE certificates.
2. We can design the special equipments according to your request.
3. We provide 12month guaranty period for the whole machine quality.
4. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
5. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
6. Engineer service on user premises is also available for necessary.


Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4. If only one set welding turn table equipment ,we will package in wooden case.
5. If several sets,then we will package in 20GP containers directly.


  FAQ:
Q1: What is the Brand Name of this product? A1: The Brand Name of this product is Weldsuccess.
Q2: Where is the Place of Origin of this product? A2: The Place of Origin of this product is China.
Q3: What is the Certification of this product? A3: The Certification of this product is ISO/CE/CO.
Q4: What is the Minimum Order Quantity of this product? A4: The Minimum Order Quantity of this product is 1 set.
Q5: How long is the Delivery Time of this product? A5: The Delivery Time of this product is 15 working days after received your payment.
