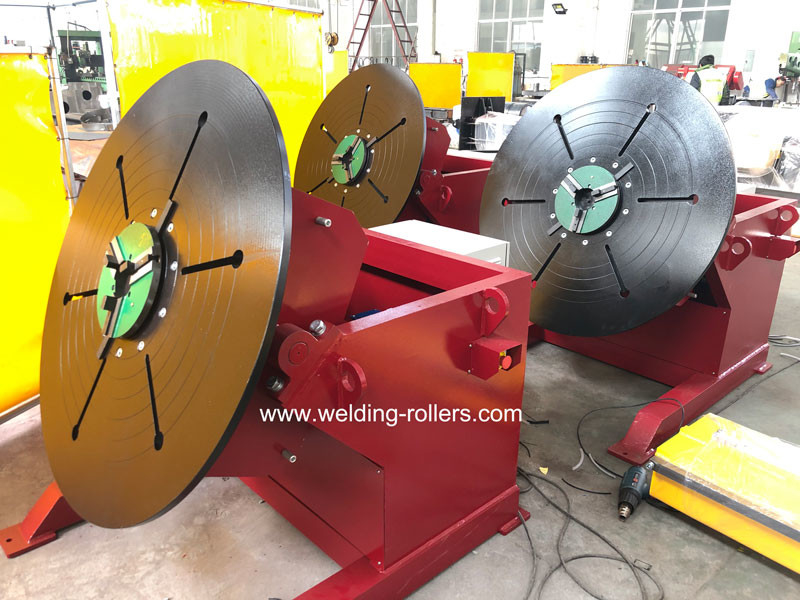

1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal

1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HBJ-10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 working days after received your payment

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description
Highlight:

1000kg Pipe Welding Positioner

,

Pipe Automatic Welding Positioner

,

1.1kw Automatic Welding Positioner

Max Capacity:
1000kg
Table Diameter:
1000mm
Rotation Motor:
0.75kw
Tilting Motor:
1.1kw
Type:
Automatic Positioner
Product Name:
Pipe Welding Positioners
Clamps Way:
Welding Chuck / Design
Certificate:
CE Approval
Color:
Customized
Warranty:
1 Year
Max Capacity:
1000kg
Table Diameter:
1000mm
Rotation Motor:
0.75kw
Tilting Motor:
1.1kw
Type:
Automatic Positioner
Product Name:
Pipe Welding Positioners
Clamps Way:
Welding Chuck / Design
Certificate:
CE Approval
Color:
Customized
Warranty:
1 Year
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal

Product Description:

1. It has powered tilting and rotating, making the work-piece at ideal position .
2. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed.
3. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.
4. More than 3 sets order together, you will get more discount.
5. Customers just wait at your work shop if want door to door delivery.
6. Delivery damage risk is ours.If broken we will send you a new one free.
1000kg Pipe Automatic Welding Positioner With Hand Control Box And Foot Pedal 0

Features:

1.The worktable is tilted by motor, accurate and reliable positioning.
2. It makes the workpiece in perfect position for welding.
3. It proves welding quality and lessens welding labor and improves productivity.
4. The worktable adopts AC frenquency conversion speed, large range and variable speed and high precision and weld at need position.


Technical Parameters:
Model

HBJ-10

Loading Capacity

1000kg maximum

Table diameter

 1000mm
Rotation motor 0.75Kw
Rotation speed 0.05-0.5rpm

Tilting motor

1.1kw

Tilting speed

0.67rpm

Tilting angle

0~90°
Max.Eccentric distance 200mm

Max.Gravity distance

150mm

Voltage

380V ±10% 50Hz 3Phase
Control system

Remote control 8m cable

Color

Customized

Warranty

 1 Year


Applications:

1.Pressure vessels
2.Pipe manufacturing industries
3.Wind power fabrication
4.Chemical & fuel storage tank fabrication
5.Any heavy cylindrical job



Support and Services:

1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.


Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4.All Package in wooden case for delivery to avoid damage.


  FAQ:
Q1: What is the Brand Name of this product? A1: The Brand Name of this product is Weldsuccess.
Q2: Where is the Place of Origin of this product? A2: The Place of Origin of this product is China.
Q3: What is the Certification of this product? A3: The Certification of this product is ISO/CE/CO.
Q4: What is the Minimum Order Quantity of this product? A4: The Minimum Order Quantity of this product is 1 set.
Q5: How long is the Delivery Time of this product? A5: The Delivery Time of this product is 20 working days after received your payment.
