10t Welding Turntable With Hand Control Box Rotary With Fast Rotation Speed

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HB-100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 6 Sets Per Month

Get Best Price
Highlight:

10t welding turntable

,

fast rotation speed welding turntable

,

fast rotation speed welding positioner turntable

Capacity:
10 Ton
Rotation Power:
4 KW
Material:
Steel
Control Way:
Wireless / Remote Cable
Voltage:
As Per Required
Package Way:
Wooden Case
Warranty:
One Year
Name:
Welding Turning Table
Capacity:
10 Ton
Rotation Power:
4 KW
Material:
Steel
Control Way:
Wireless / Remote Cable
Voltage:
As Per Required
Package Way:
Wooden Case
Warranty:
One Year
Name:
Welding Turning Table

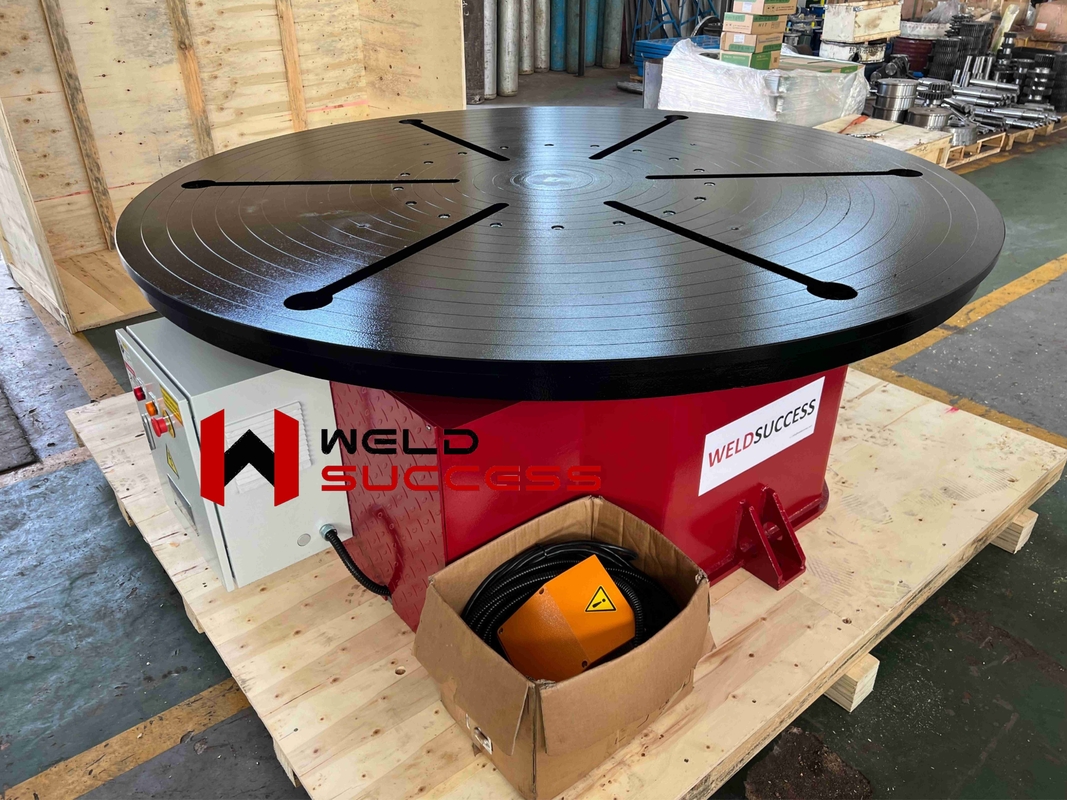

10t Welding Turntable With Hand Control Box Rotary With Fast Rotation Speed

Product Description:

1. Fully machined turntable of various sizes with centering grooves and T-slots.
2. Sand blasting treatment to main welding parts before painting.
3. All motion parts have lubrication system.
4. Hand pendant with Forward & Reverse Rotation and speed potentiometer are standard.
10t Welding Turntable With Hand Control Box Rotary With Fast Rotation Speed 0
10t Welding Turntable With Hand Control Box Rotary With Fast Rotation Speed 110t Welding Turntable With Hand Control Box Rotary With Fast Rotation Speed 2

Features:

1. Table only can horizontal rotary, not can title.
2. Table size can be customize
3. Support high speed rotary.
4. Rotation speed is digital readout on the electric box.






Technical Parameters:

Model HB-100
Max Capacity 10 Ton
Table Diameter 2000 mm
Rotation Power 4 KW
Rotation Speed 0.05~0.5
Warranty One Year
OPtion

□Foot Pedal           □Wireless Control



Applications:

1. Pipe welding positioners are used for diverse applications ranging from pipe spooling to positioning of very large cumbersome parts such as chassis components or structural steel.
2. Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings.
3. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.
4. We design and manufacture custom pipe welding positioners and welding rotating tables that suit a variety of pipe handling applications.


Support and Services:

1. We provide 12month guaranty period for the whole machine quality.
2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.


Packing and Shipping:

  • The Welding Turn Table will be packaged in a cardboard box.
  • The box will be taped closed and labeled with the product name and address of shipment.
  • The box will then be placed in a larger box or crate for shipping.
  • The shipment will be sent via a trusted shipping company.


FAQ:

Q: What is the Brand Name of the Welding Turn Table?

A: The Brand Name of the Welding Turn Table is Weldsuccess.

Q: What is the Model Number of the Welding Turn Table?

A: The Model Number of the Welding Turn Table is HB.

Q: Where is the Welding Turn Table made?

A: The Welding Turn Table is made in China.

Q: What certifications does the Welding Turn Table have?

A: The Welding Turn Table has ISO / CE / CO certifications.

Q: What is the minimum order quantity for the Welding Turn Table?

A: The minimum order quantity for the Welding Turn Table is 1 set.
