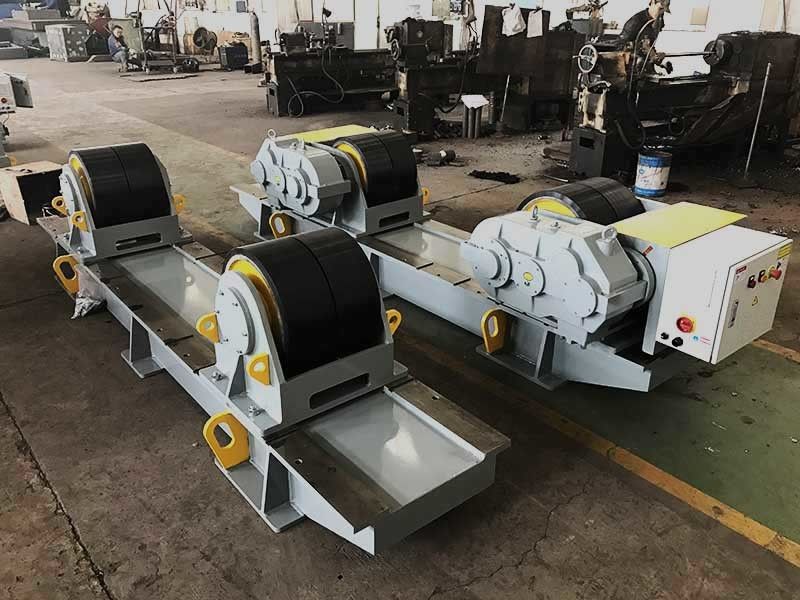

80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator

80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator
80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator 80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator

Large Image :  80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: CE / ISO
Model Number: HGK - 100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000~8000 / Set
Packaging Details: Package into container directly
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 Sets per month
Detailed Product Description
Name: Welding Turning Rolls Load Capacity: 80 Ton
Vessels Diameter: 800~5000 Mm Roller Wheels: PU
Rotation Speed: 100~1000 Mm/min Control Way: Remote Hand Control Box
Others: Welding Rotator Application: Wind Tower
Type: Tank Turning Rolls
High Light:

welding turning rolls

,

pipe turning rollers

80 Ton Wind Tower welding Tank Turning Rolls ,PU Wheel Pipe Welding Rotator​



Conventional Tank Turning Rolls Details info

1. One drive roller & one idler roller package together as one set tank turning rolls.

2. Load capacity 80 Ton for one drive & one idler. If one drive & two idlers can be load 120 Ton.

3. Vessels diameter in 800~5000mm adjust by bolt.

4. Rotation turning speed in 100~1000 mm/min via VFD control.

5. Turning speed in digital readout on remote hand cotrol box.

6. Motorized traveling base frame is also available for longer pipe butt welding.



Tank Turning Rolls Competitive Advantage:
  • Our welding roller Inverter is from Danfoss / Yaskawa
  • Our welding rotator Motor is from Invertek
  • Our tank turning rolls Reducer is from China brand
  • Our welding Electric system is from Schneider



Tank Turning Rolls / Pipe Welding Rollers Specification

Model HGK-80 HGK-100 HGK-200 HGK-300 HGK-500
Max Capacity 80 T 100 T 200 T 300 T 500 T
Roller Diameter (mm) 450 500 700 800 900
Roller Width (mm) 220*2 220*2 300*2
Working Range (mm) 800-5000 1000-6000 1000-8000
Roller Speed (mm/min) 1-1000
Motor Power (kw) 2*2.2 2*3 2*4 2*5.5 2*7.5
Option : □ Bolt Adjustment      □ Lead Screw Adjustment



Bolt Adjustment Conventional Tank Turning Rolls Advantages

1. Double pieces wheels with large width to avoid impress damage of the tanks.

2. Fully protection cover of the motor to avoid motor damage by accident.

3. European standard degign of the electric box control system.

4. Overseas agent available to ensure you the after sales service.

5. Details work manual with pictures induction of machine operation.



Application:

  • Boiler industry
  •  Storage tank fabrication
  •  Pipe industry
  •  For Welding, Polishing, Positioning, etc
More Questions Customers May Concerned

Q : What about the transportion?
A : 1. Tank turning rolls is packaged in wooden case to anti damage during the transportational process .
     2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
     3. Door to door delivery service is also available.

Q : What is your warranty and after sale service for tank turning rolls?
A : 1. All our tank turning rolls with One Year Warranty time , fully test at our work shop before delivery.
     2. If you have any questions on the installation , you will get our engineers respond within 24 hours.

Q : Can I come to your factory to check and accept before shipment?
A : Yes, we will inform you the inspection schedule.

Q : Can your machine or other products be customized?
A : yes, we are a professional manufacturer specializes in welding equipments about 15 years. We have a strong design team to meet requirements of customers.


Workshop site



80 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator 080 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator 180 Ton Wind Tower welding Turning Rolls ,PU Wheel Pipe Welding Rotator 2
