5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls

5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls
5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls 5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls

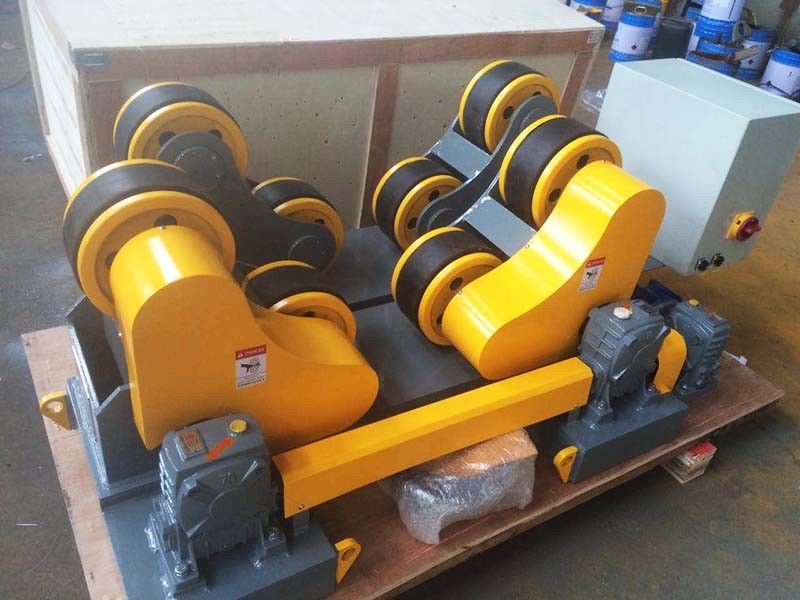

Large Image :  5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls

Product Details:
Place of Origin: CHINA
Brand Name: SKSS
Certification: ISO / CE / CO
Model Number: HGZ-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 10sets per month
Detailed Product Description
Name: Pipe Welding Rotator Load Capacity: 5T
Wheel Material: Rubber And Steel Type: Tank Turning Rolls
Control Way: Hand Control Box & Foot Padel Application: Butt Welding
Motor: 0.75KW Adjust Way: Self Aligning
High Light:

pipe turning rolls

,

pipe stand roller

5T self aligning pipe welding rotator /butt welding machine/pipe turning rolls

WELDSUCCESS PRODUCTS.pdf



   This is the general-purpose equipment for welding&assembly of cylindrical part ,butting fitting up welding, It also can assembly and weld together with other tooling for the cone inequality diameter rotary.The wheel of rotator can be customized.PU,STEEL and RUBBER CASTING are also workable,Pipe welding rollers test is at our work shop



5T  pipe welding roller

  • One drive & one idler packaged together.
  • Remote hand control & foot pedal control.
  • Self aligning for different diameter vessels.
  • Stepless adjustable speed of the driven part.
  • Drive rotation speed in digital readout.
  • Top-class electronic components from Schneider.
  • 100% new from original manufacturer
  • CE marking

Specification

Model SAR-5
Load capacity - Drive 2.5 tons maximum
Load capacity - Idler 2.5 tons maximum
Load capacity - Set 5 tons maximum
Rotation capacity 5 tons maximum
Vessels diameter Min. 250mm ~ Max.2300mm
Rotation speed 100~1000 mm/min VFD
Rotation power 0.75kw with fan cooling
Roller wheels PU (Polyurethane wheels)
Control way Remote hand control + Foot pedal
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate CE approval



Details parts brand

  • Inverter is from Danfoss / Yaskawa
  • Motor is from Invertek
  • Reducer is from China brand
  • Electric system is from Schneider



Pipe Welding Roll Usage

1. Medium range series has been engineered for the effective positioning of long cylindrical work-pieces. 2. Oil tanks, pressure vessels, and pipe are applications that utilize turning rolls.

3. Long objects that are not cylindrical may be adapted with the aid of custom designed support rings.

4. We design incorporates overload discs on each wheel that prevent excessive loads from damaging the tires.



After sale service

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Warranty

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Installation

1. Normally the rotators shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.

4. Some overseas market service available.



5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls 05T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls 1

5T Self Aligning Pipe Welding Rotator / Butt Welding Machine,Tank Turning Rolls 2



                     PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
