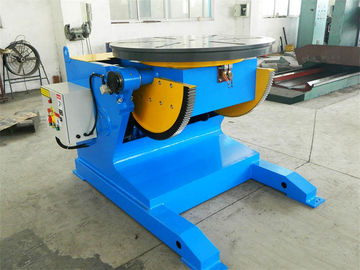

Blue 5 T Pipe Welding Positioners With Turning Working Table And Speed Digital Readout

Product Details

Place of Origin: CHINA

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HBJ-50

Payment & Shipping Terms

Minimum Order Quantity: 1 SETS

Price: Negotiation

Packaging Details: wodden package

Delivery Time: 25days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 5Sets per month

Get Best Price
Highlight:

tube welding positioner

,

welding rotators positioners

Load Capacity:
5T
Application:
Tilting And Turning Welding
Tilting Angle:
0 - 90 ° / 120°
Table Diameter:
1500mm
Rotation Speed:
0.05-0.5 Rpm
Rotary Way:
Hand Box And Foot Pedal
Rotation Power:
3KW
Titling Power:
3KW
Name:
Pipe Welding Positioner
Load Capacity:
5T
Application:
Tilting And Turning Welding
Tilting Angle:
0 - 90 ° / 120°
Table Diameter:
1500mm
Rotation Speed:
0.05-0.5 Rpm
Rotary Way:
Hand Box And Foot Pedal
Rotation Power:
3KW
Titling Power:
3KW
Name:
Pipe Welding Positioner
Blue 5 T Pipe Welding Positioners With Turning Working Table And Speed Digital Readout

Blue 5 T Pipe Welding Positioners With Turning Working Table And Speed Digital Readout



WELDSUCCESS PRODUCTS.pdf



Pipe Welding Positioners Description

  • Fast alignment of weld joints.
  • Idler turning with hydraulic jack up system.
  • Hydraulic jack up system to control pipe Up / Down.
  • Wireless & remote control box packaged together.
  • Traveling base frame is available for pipes butt welding.
  • Top-class electronic components from Schneider.
  • 100% new from original manufacturer
  • CE marking

Pipe Welding Positioners Spare Parts Brand

1.Inverter is from Danfoss

2.Motor is from Invertek

3.Reducer is from China brand

4.Electric system is from Schneider



Here Below Are Several Model Pipe Welding Positioners Specifications

Model HBJ-10 HBJ-30 HBJ-50 HBJ-100 HBJ-150
Max Capacity 1T 3T 5 T 10 T 15 T
Table Diameter (mm) 1000 1400 1500 2000 2200
Rotation Power (kw) 1.1 1.5 3 3 3
Rotation Speed (rpm) 0.05-0.5
Tilting Power (kw) 1.5 2.2 3 4 5.5
Tilting Angle (°) 0-90 0-90 0-90 0-90 0-90
Tilting Speed (kw) 0.67 0.23 0.14 0.14 0.14
Option: □ Foot Pedal □ Wireless Control □ Tilting Angle 120°























Positioner Feature:

1. Through rotating or tilting the work table, Block-type positioner is the device making the weld seam in a horizontal or boat-shaped position.

2. Work table rotate by using frequency conversion stepless, while the sector gear and hydraulic cylinder drive table tilt.

3. Table turning angle is 0 ° ~ 120 °.

4. Joint control can be achieved between work table and manipulation or welding machine.

5. Control system has three options: the key figures controlled, digital controlled switching and switching relays controlled.

6. The product is used in a variety of shafts, plates, cylinders and other rotary parts of the welding. It is the most widely used structure.

7. precision and weld at need position.



Detail image:

Blue 5 T Pipe Welding Positioners With Turning Working Table And Speed Digital Readout 0



Installation

1. Normally the pipe welding positioners shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.

4. Some overseas market service available.





Blue 5 T Pipe Welding Positioners With Turning Working Table And Speed Digital Readout 1
