Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBJ-20
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance, L/C
Supply Ability: 5 Sets Per Month
Max Capacity: |
2 Ton |
Application: |
Pipe Turning Welding |
Name: |
Pipe Welding Positioners |
Table Diameter: |
1200 Mm |
Working Way: |
Together With Support Roller |
Adjust Way: |
Titling And Rotary |
Control Way: |
Hand Box And Foot Pedal |
Color: |
Red |
Max Capacity: |
2 Ton |
Application: |
Pipe Turning Welding |
Name: |
Pipe Welding Positioners |
Table Diameter: |
1200 Mm |
Working Way: |
Together With Support Roller |
Adjust Way: |
Titling And Rotary |
Control Way: |
Hand Box And Foot Pedal |
Color: |
Red |
Some Models Pipe Welding Positioners Detail Parameters
|
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
|
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
|
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
|
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
|
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
|
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
|
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
||||

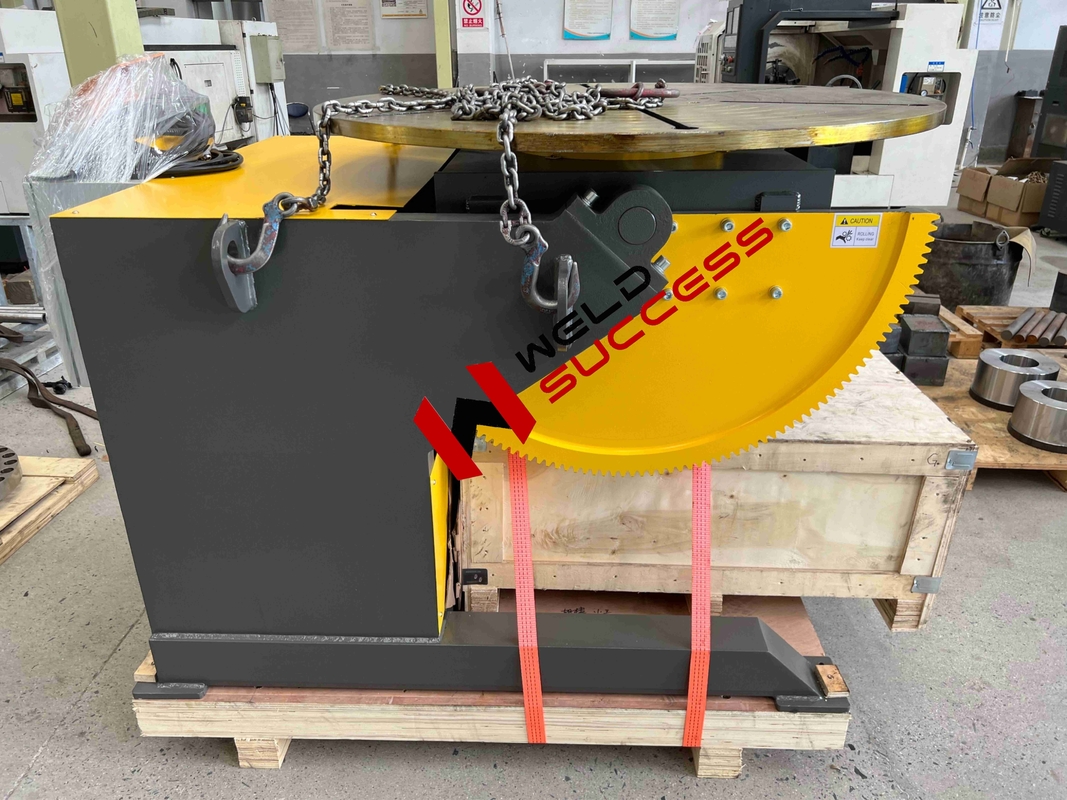

2-ton welding positioner is a piece of equipment used for rotating and positioning workpieces during welding operations. It is typically designed to support and manipulate workpieces weighing up to 2 tons, allowing for precise and controlled positioning during the welding process. Here are some features and applications of a 2-ton welding positioner:
Load Capacity: The welding positioner has a maximum load capacity of 2 tons, which means it can handle workpieces weighing up to that limit. It is important to adhere to the specified weight limit to ensure safe and effective operation.
Rotation Capability: The positioner is equipped with a rotating mechanism that allows for continuous or incremental rotation of the workpiece. This rotation capability enables access to different angles and sides of the workpiece during welding, improving welding efficiency and quality.
Tilting Function: Many welding positioners also have a tilting function, which allows the workpiece to be tilted to a desired angle. This feature is particularly useful for welding operations that require specific positioning or access to hard-to-reach areas of the workpiece.
Variable Speed Control: Welding positioners often provide variable speed control for rotation and tilting motions. This enables operators to adjust the speed according to the requirements of the welding process and the workpiece being welded.
Workpiece Clamping: The positioner is designed with mechanisms to securely clamp and hold the workpiece in place during rotation and tilting. This ensures stability and minimizes movement or vibrations that could affect the welding process.
Automation Compatibility: Some welding positioners are compatible with automation systems, such as integrating with robotic welding systems or computer numerical control (CNC) systems. This allows for automated and programmable positioning and rotation, enhancing productivity and precision.
Applications: A 2-ton welding positioner is commonly used in various industries such as manufacturing, construction, and metal fabrication. It is suitable for welding operations involving medium-sized workpieces, such as pipes, tanks, structural components, and other similar applications.
JUST CONTACT US FOR DETAIL QUOTATION.
