Bolt Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity

Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity
Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity

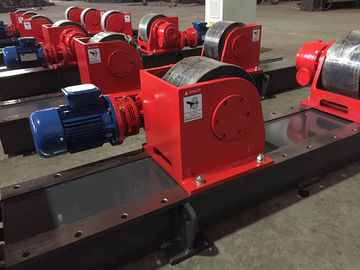

Large Image :  Bolt Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity

Product Details:
Place of Origin: CHN
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK-40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 10sets per month
Detailed Product Description
Type: Tank Turning Rolls Load Capacity: 40T
Control Way: Hand Control Box & Foot Padel Application: Oil Tank,wind Tower,pressure Vessels
Motor: 2*1.1KW Product Name: Bolt Adjustment Pipe Welding Roller
Roller Type: PU Consist: One Drive & One Idler
Dimensions: Customized
High Light:

welding turning rolls

,

pipe turning rollers

Motor Adjustment Conventional Pipe Welding Tank Turning Rolls 40 Ton Load Capacity



40T Tank Turning Rolls /Bolt Adjustment Conventional Pipe Welding Rollers

WELDSUCCESS PRODUCTS.pdf



Self-alignment/self centering tank turning rolls. This type welding rotators are used for rotating piping fitting,Stainless Steel Tank Polishing, ,turning roller painting and tank turning rolls assembly of cylindrical roller shell.



Bolt  Adjustment Conventional Tank Turning Rolls Description:

1. One drive piece roller & one idler piece roller are packed together as one set for sale.
2. Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3. Top-class electronic components from Schneider to ensure long time using life.
4. Our tank tuning rolls drive rotation speed is in digital readout.
5. 100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.
6.  If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.



Here Below is 40T Pipe Welding Tank Turning Rollers Specification:



Model CR-40
Load capacity - Drive 20 tons maximum
Load capacity - Idler 20tons maximum
Load capacity - Set 40 tons maximum
Rotation capacity 40 tons maximum
Vessels diameter Min. 500mm ~ Max.4800mm
Rotation speed 100~1000 mm/min VFD
Rotation power 2*1.5kw with fan cooling
Roller wheels PU (Polyurethane wheels)
Control way Remote hand control + Foot pedal
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate CE approval



Conventional Tank Turning Rolls Competitive Advantage:

1.Our pipe rotator Inverter is from Danfoss / Yaskawa.
2.Our welding rollers Motor is from Invertek.
3.Our pipe tank turning rolls Reducer is from China brand.
4.Our tank turning rolls beds Electric system is from Schneider.

Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity 0



 Details Images



Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity 1



After sale service

1. We provide 12month guaranty period for the whole tank turning rolls quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.







Bolt  Adjustment Conventional Pipe Welding Rollers 40 Ton Load Capacity 2
