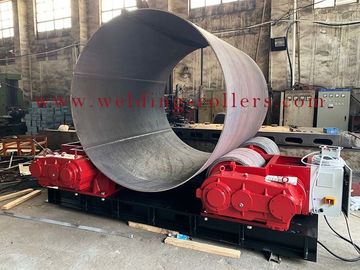

Heavy Duty 100 Tons Tank Turning Rolls , Welding Roller Stand Steel Rolls Red / Black

Heavy Duty 100T Conventional Tank Turning Rolls, Pipe Welding Rotators.

WELDSUCCESS PRODUCTS.pdf

Heavy Duty Conventional Pipe Welding Rotator Description

100T Conventional welding rotator

Model: CR - 100

1. Our welding rollers pack One drive piece roller & one idler piece roller together as one set for sale.
2.Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3.Top-class electronic components from Schneider to ensure long time using life.
4.Our tank tuning rolls' drive rotation speed is in digital readout.
5.100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.
6. If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.

Bolt Adjustment Pipe Welding Rotator Specification

Model :                        CR-100

Color :                         Customized

Load capacity - Set:    100 tons maximum

Rotation capacity :      100 tons maximum

Vessels diameter:        Min. 800mm ~ Max.5000mm

Rotation speed:           100~1000 mm/min VFD

Rotation power:           2*3kw with fan cooling

Roller wheels:             Steel

Control way:                Remote hand control + Foot pedal

Input Voltage:              110V ~ 575V Single/3 Phase 50/60Hz

Pipe Welding Rotator Details Parts Brand

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system

Application:

Pressure vessel;
Pipe manufacturing industries
Wind power fabrication
Chemical & fuel storage tank fabrication
Any heavy cylindrical job

Attention More

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning pipe welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.

After sale service

1. We provide 12month guaranty period for the whole pipe welding rotator quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
