Small Duty 600kg Pipe Welding Positioners With Customized Chuck

Name: Small Duty 600kg Pipe Welding Positioners With Customized Chuck
Brand: Weldsuccess
SKU: HBJ-06
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (132 reviews)

Large Image : Small Duty 600kg Pipe Welding Positioners With Customized Chuck

Product Details:

Place of Origin:	China
Brand Name:	Weldsuccess
Certification:	ISO/CE/CO
Model Number:	HBJ-06

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Packed in wooden case / Container
Delivery Time:	20 working days after received your payment
Payment Terms:	TT / 30 % payment in advance
Supply Ability:	5 sets per month

Contact Now

Detailed Product Description

Load Capacity:	600kg	Other Name:	Rotary Welding Positioner
Table Diameter:	1000mm	Tilting Angle:	0-90°/ 0-120°
Tilting Speed:	1.1 Rpm	Tilting Power:	0.75 Kw
Rotation Speed:	0.09-0.9 Rpm	Rotation Power:	0.75 Kw
Certificate:	CE Approval
High Light:	600kg Pipe Welding Positioners , Small Duty Pipe Welding Positioners , tube welding positioner

Small Duty Rotary Welding Positioner With Customized Chuck, Rotary And Tiltling Positioner

More products pics.pdf

Welding positioners enable large, bulky or awkward workpieces to be accurately positioned to achieve the ‘down hand’ welding position without the need for overhead cranes or additional manpower or handling equipment.

Here Below Is 600kg Rotary Welding Positioner Parameter

Model	HBJ-06
Load capacity	600kg maximum
Table diameter	1000mm
Tilting angle	0-90°/ 0-120°
Tilting speed	1.1 rpm
Tilting power	0.75 kw
Rotation speed	0.09-0.9 rpm
Rotation power	0.75 kw
Control way	Remote hand control + Foot pedal
Input Voltage	110V ~ 575V Single/3 Phase 50/60Hz
Certificate	CE approval

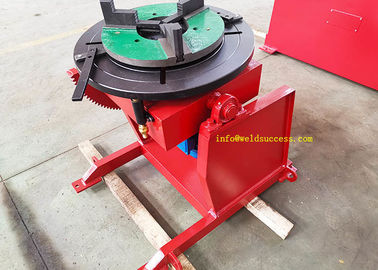

Small Duty 600kg Pipe Welding Positioners With Customized Chuck 0

Model: HBJ-06

Electric gear tilt positioner with 0-90°tilting algle
Remote hand control box & foot pedal control.
Stepless adjustable speed of the table rotation.
Top-class electronic components from Schneider.
100% new from original manufacturer
CE marking

Welding Positioners Application:

1. Pressure vessels

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job

Rotary Welding Positioners Spare Parts Brand

Pipe Welding Positoners Inverter is from Danfoss
Welding Rotory Turn Table Positioner Motor is from Invertek
Rotary Welding Positioners Reducer is from China brand
Welding Positioners Electric system is from Schneider

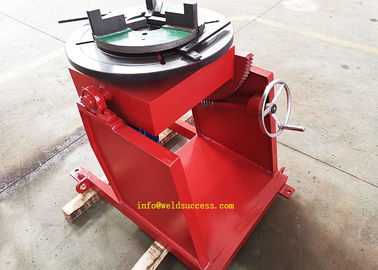

Small Duty 600kg Pipe Welding Positioners With Customized Chuck 1

Feature:

1.The worktable is tilted by motor, accurate and reliable positioning.

2. It makes the workpiece in perfect position for welding.

3. It proves welding quality and lessens welding labor and improves productivity.

4. The worktable adopts AC frenquency conversion speed, large range and variable speed and high precision and weld at need position.

THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
