Spool Pipe Welding Rotator With Tank Turning Roller Stand, Tank Turning Rolls

Name: Spool Pipe Welding Rotator With Tank Turning Roller Stand, Tank Turning Rolls
Brand: Weldsuccess
SKU: CW
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (157 reviews)

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: CW

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 10 Days

Payment Terms: T/T, L/C, D/P

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                spool pipe welding rotator, 600mm Pipe Welding Rotator, 9000mm Pipe Welding Rotator


Name:	Pipe Welding Rotator	Type:	Spool Rotator
Pipe Diameter:	50-600mm	Usage:	Pipe Welding,WELDING SUPPORT
Warranty:	12 Months	Color:	Cutomize
After-sales Service Provided:	Video Technical Support	Roller Material:	Rubber Or PU Or Metal
Speed Control Way:	Various Frequency Drive

Name:	Pipe Welding Rotator
Type:	Spool Rotator
Pipe Diameter:	50-600mm
Usage:	Pipe Welding,WELDING SUPPORT
Warranty:	12 Months
Color:	Cutomize
After-sales Service Provided:	Video Technical Support
Roller Material:	Rubber Or PU Or Metal
Speed Control Way:	Various Frequency Drive

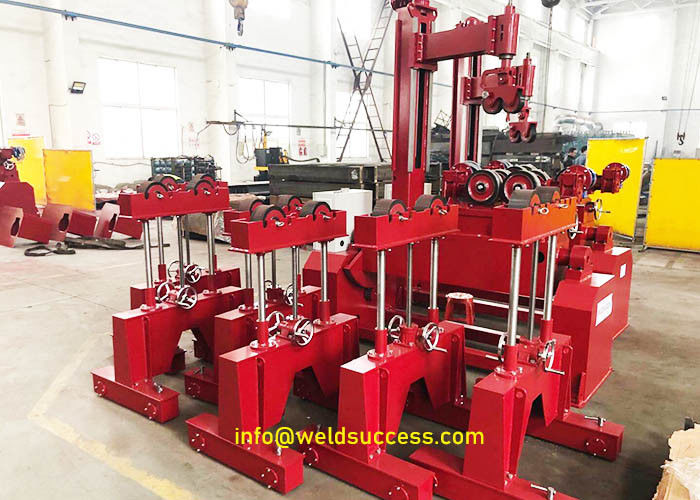

Spool Pipe Welding Rotator With Tank Turning Roller Stand, Tank Turning Rolls

Spool Pipe Welding Rotator With Tank Turning Roller Stand, Tank Turning Rolls
WELDSUCCESS PRODUCTS.pdf

Pipe rotator is specially designed and manufactured for purpose of meeting the requirements of enhancing productivity, increasing the extent of automatic, reducing welder’s working intensity and adapting to piping workshop prefabrication. The welding head will be relatively fixed, while the piping spool piece revolving at a specific rate, and the high efficient and low cost shielded welding or SAW process is adopted, so it has the features of easy-operation, reliable-performance and wide-application field.

Here Below Are Some Type Spool Welding Rotator Specification:

Model	CW-1000	CW-1500	CW-2000	CW-3000	CW-5000
Welding/Cutting Length(mm)	1000	1500	2000	3000	5000
Min.Cylinder Diameter (mm)	50-600 mm
Welding / Cutting Way	□ TIG/MIG Welding source □ Flame/Plasma Cutting
Rotation Speed (mm/min)	0.125-2.5	0.075-1.5		0.05-1
Speed Control Way	Various Frequency Drive
Clamps Way	□ Pneumatic □ Welding Chuck
Option :	Welding / Cutting Length can up to 9000mm.

Features Of Spool Pipe Welding Rotators

1. Special design welding turning roller will support under the pipe if your pipe too length.

2. Welding guns on the arm for automatic welding.

3. Seam tracker available for adjust the seam welding.

4. Other demand just advise us more request directly.

Used For

Pressure vessel;

Pipe manufacturing industries

Wind power fabrication

Chemical & fuel storage tank fabrication

Pipe Welding Rotators / Tank Turning Rolls Spare Parts Brand:

1. Our welding roller Inverter is from Danfoss / Yaskawa

2. Our welding rotator Motor is from Invertek

3. Our Tank rolls Reducer is from China brand

4. Our welding Electric system is from Schneider

After sale service

1. We provide 12month guaranty period for the whole machine quality.

2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Spool Pipe Welding Rotator With Tank Turning Roller Stand, Tank Turning Rolls 0
