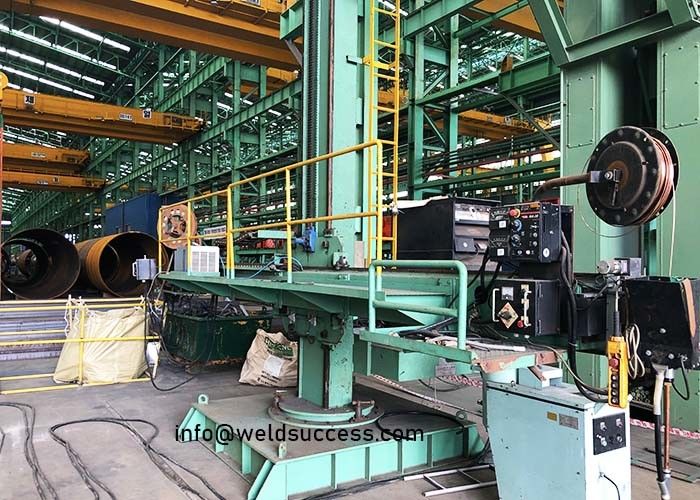

Green Color Column Welding Manipulators With Welding Gun

Green Color Column Welding Manipulators With Welding Gun
Green Color Column Welding Manipulators With Welding Gun Green Color Column Welding Manipulators With Welding Gun

Large Image :  Green Color Column Welding Manipulators With Welding Gun

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 5050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case / Package in Container Directly
Delivery Time: 25 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3 sets per month
Detailed Product Description
Name: Welding Manipulator Boom End Max. Load: 250kg
Vertical Boom Travel: 5000mm Horizontal Boom Travel: 5000 Mm
Rotation Angle: ±180° Color: Customized
Control Mode: Hand Control Box Control Traveling Speed: Motorized
Warranty: 1 Year Other Name: Column And Boom
High Light:

250kg Welding Manipulators

,

Motorized Welding Manipulators

,

Column And Boom Welding Manipulators

Green Color Welding Manipulators. Automatic Column And Boom Welding Machine With Welding Gun

WELDSUCCESS PRODUCTS.pdf



Column welding manipulator is used to hold the welding torch instead of welder. It is a platform integrating all welding related components,Welding column&Boom Manipulators of Wuxi Success stands out not only for innovation in design and quality of manufacture, but also for reliability and robustness. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems, and extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines.



Welding Manipulator Brif Discription

1. Inside, outside,longitudinal & circumferential welding applications.

2. SAW,MIG welding head are all available.

3. Options for seam tracker,monitor & flux recovery machine.

4. With motorized cross slides to adjust the welding gun position.

5. Using together with pipe turning rolls.

6. CE marking



Here Below is LHC-5x5  Welding Manipualtor Specifications

Model LHC-5X5
Boom end max. load 250 kg
Vertical boom travel 5000 mm
Vertical boom travel speed 1000mm/min
Vertical travel motor 1.1 kw with brake
Horizontal boom travel 5000mm
Horizontal boom travel speed 120~1200mm/min
Horizontal travel motor 0.55 kw
Rotation angle ±180°
Rotation way Motorized
Traveling speed Motorized
Traveling way Motorized
Control way Remote hand control
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate CE approval

Pipe Welding Manipulator Applications:
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all available.
3. This machine can be used together with welding rotator, welding positioner and achieves the tank longitudinal and circle seam welding.
4. It features in advanced structure complete function easy operation to make sure of welding quality.


Spare Parts Brand On Welding Manipulators

  • Automatic welding welder Reducer is from China brand
  • Pipe Welding Manipulator Electric system is from Schneider
  • Column boom welding manipulator inverter is from Danfoss
  • welding manipulator Motor is from Invertek
Green Color Column Welding Manipulators With Welding Gun 0


After-sales serviceFor Our Welding Column And Boom

1. Our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.

Installation
1. Normally all the equipments will disassemble and packaged in Container.
2. We will supply you all the detail installation drawings for your reference.
3. Our engineers also supply door to door installation service.





When you send us the inquiry, please advise us your single tank diameter and length.



Door to door price is also availble. Including your import tax.



NOW PLEASE SENS US YOUR INQUIRY.
