Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 60
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Name: |
Pipe Welding Roller |
Dimensions: |
Min. 750mm ~ Max.4800mm |
Roller Material: |
Polyurethane Or Rubber Or Steel Roller |
Load Capacity: |
60T |
Traveling Way: |
Motorized Moving |
Remote Control: |
Hand Control Box With 10m Cables |
Type: |
Automatic Self Aligning |
Voltage: |
As Per Required |
Certificate: |
CE Approval |
Name: |
Pipe Welding Roller |
Dimensions: |
Min. 750mm ~ Max.4800mm |
Roller Material: |
Polyurethane Or Rubber Or Steel Roller |
Load Capacity: |
60T |
Traveling Way: |
Motorized Moving |
Remote Control: |
Hand Control Box With 10m Cables |
Type: |
Automatic Self Aligning |
Voltage: |
As Per Required |
Certificate: |
CE Approval |
60Tons Self Aligning Pipe Welding Rollers, Automatic Travaling Tank Turning Rolls Rotator
WELDSUCCESS PRODUCTS.pdf
Self aligned tank turning rolls adjust the wheel centerline setting automatically when the vessel is lowered into place. There are no couplings to change and no pins to remove or replace.
Self aligned tank turning roll provides constant centerline capabilities which make set-up and alignment quick and easy.
self-alignment/self centering type pipe welding rotator. These welding rotators are used for rotating piping fitting,Stainless Steel Tank Polishing, ,turning roller painting and tank turning rolls assembly of cylindrical roller shell.
Here Below is 60T Self Aligning Pipe Welding Rollers Specification:
| Model | SAR-60 |
| Load capacity - Drive | 30 tons maximum |
| Load capacity - Idler | 30 tons maximum |
| Load capacity - Set | 60 tons maximum |
| Rotation capacity | 60 tons maximum |
| Vessels diameter | Min. 750mm ~ Max.4800mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 2*2kw with fan cooling |
| Roller wheels | PU (Polyurethane wheels) |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |

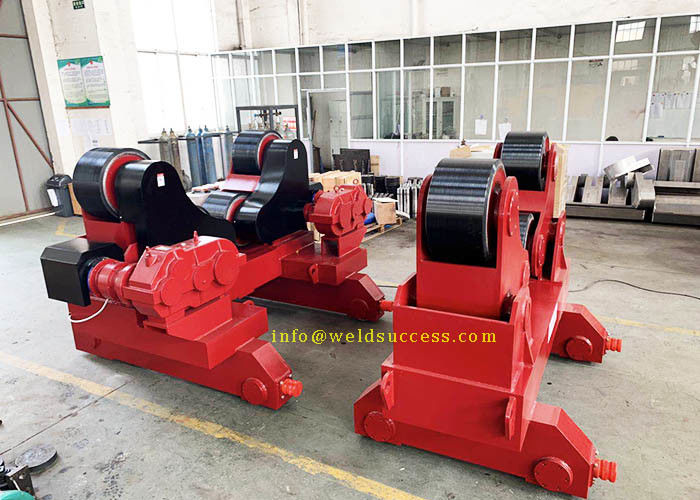

60T self aligning pipe welding rotator
Model: SAR -60
Automatic Self Aligning Tank Turning Rolls Spare Parts Brand:
|
Weldsuccess pipe welding rotator Motor is from Invertek |
|
Pipe welding Rotator Inverter is from Danfoss / Yaskawa |
|
Welding Electric system is from Schneider |
|
Self Aligning tank turning rolls Reducer is from China brand |
|
Weldsuccess welding rotator with CE cerfication |
We suggest use together with self aligning pipe welding rotator
1. Two unit fit up rotators for pipe end support.
2. Two conventional rotators for pipe turning.
3. Fit up welding rotator work for up /down adjust.
4. Conventional rotator work for motorized turning.
5. Fit up welding rotators is only idler turning.
6. Fit up rotators controlled by hydraulic pump.
7. Conventional rotators controlled by motor.
8. All rotators with wireless hand control box.
After sale service
1. We provide 12month guaranty period for the whole machine quality.
2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
