Full Lubricating 20T Self Centering Rotator For Pipe Welding

Certification
China WELDSUCCESS AUTOMATION EQUIPMENT (WUXI) CO., LTD certification
China WELDSUCCESS AUTOMATION EQUIPMENT (WUXI) CO., LTD certification
Customer Reviews
Thanks for your reception,Jason. I will let you know again when we have any new project. If you need any help in Canada, just call me.Have a nice day.

—— Ricky Smirnova

Jason is man full of passion. He is the first man visited my shop from China. You know our shop is in Vietnam and he just fly here.

—— Tang Vic

Hi Jason, i got your rotator.Seems very good. Thanks for your wireless control device.Its very convenient.

—— Alpesh Zdanowica

Glad to cooperation with you Jason. Your rotators are very good. Of please make sure the 100T model also delivery on time. Have a nice day.

—— Emily Dewaart

I'm Online Chat Now

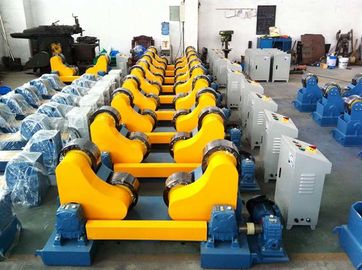

Full Lubricating 20T Self Centering Rotator For Pipe Welding

Full Lubricating 20T Self Centering Rotator For Pipe Welding
Full Lubricating 20T Self Centering Rotator For Pipe Welding

Large Image :  Full Lubricating 20T Self Centering Rotator For Pipe Welding

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 20 T = 4500lbs Adjust Way: Manual Bolt Adjustment
Motor Power: Double Motors / 2 * 3 KW Control Way: Hand Control Box 5M Cable
Rorking Range: Tank Diameter 800 - 5000 Mm Delivery Time: 15 Days
High Light:

20T self centering rotator

,

4500lbs self centering rotator

,

20T pipe welding rotator

ABB Motor 20T Conventional Pipe Roller Stands, 20T Pipe Welding Rotator Bolt Adjustment



Pipe Welding Rotator / Pipe Welding Rollers Description



1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P

3. Adjustment way : Lead Screw Manual
4. Roller : Rubber / Steel / PU (Polyurethane)
5. Original : Factory , Wuxi China
6. Condition : New / CE certificate supported



Attention please



1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning Pipe Welding Rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Pipe Welding Rotator Detail Parameters



Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment





Pipe Welding Rotator Competitive Advantage


1. The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.

4. Double motors to ensure turing stably.



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Pipe Welding Rotator After Sale Service



1. We provide 12month guaranty period for the whole Pipe Welding Rotator quality.

2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.
