Home > Products > Pipe Welding Rollers > 160T Welding Conventional Pipe Rollers Rotator With PU With Bolt Adjustment

160T Welding Conventional Pipe Rollers Rotator With PU With Bolt Adjustment

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HGK-160

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

160T Welding Pipe Rollers

,

Welding Conventional Pipe Rollers Rotator

,

Welding Pipe Rollers Rotator With PU

Turning Capacity:
160 Ton Maximum
Drive Load Capacity:
80 Ton Maximum
Idler Load Capacity:
80 Ton Maximum
Vessel Size:
800~5000mm
Voltage:
380 V ±10 % 50 Hz 3Phase
Adjust Way:
Bolt Adjustment
Color:
Customized
Warranty:
1 Year
Turning Capacity:
160 Ton Maximum
Drive Load Capacity:
80 Ton Maximum
Idler Load Capacity:
80 Ton Maximum
Vessel Size:
800~5000mm
Voltage:
380 V ±10 % 50 Hz 3Phase
Adjust Way:
Bolt Adjustment
Color:
Customized
Warranty:
1 Year
160T Welding Conventional Pipe Rollers Rotator With PU With Bolt Adjustment

Product Description:

1.160 Ton load capacity welding rotators including one drive unit and one idler unit.
2.Normally we use Diameter 500mm and width 400mm PU wheels, Steel material roller wheels is available for customized.
3.With 2*4kw frequency variable motors, it will ensure the rotation more stable.
4.If the vessels with eccentricity, we will use the brake motor to increase the rotation torque.
5.Standard 160 Ton welding rotator with vessels diameter 5000mm capacity, we also can customized for bigger size according to the end user request.
6.Fixed basis, motorized traveling wheels and fit up growing lines are all available from Weldsuccess Ltd.

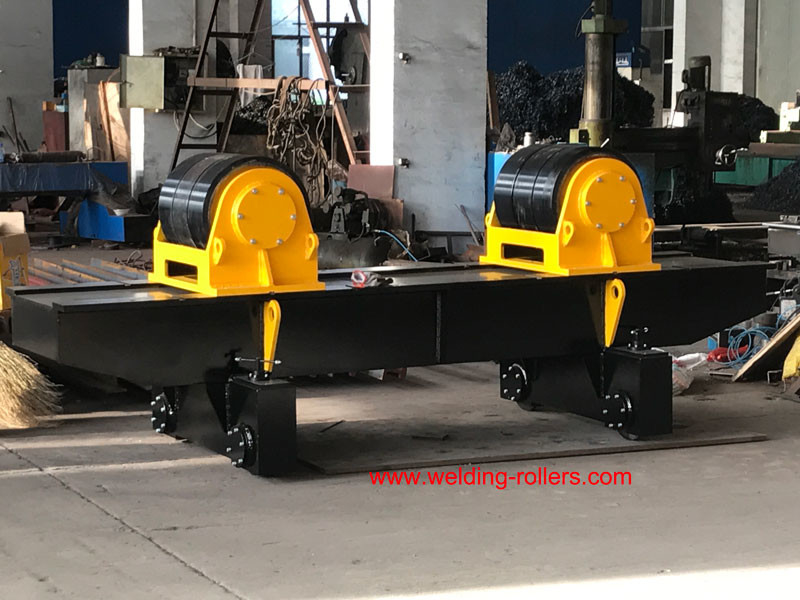

160T Welding Conventional Pipe Rollers Rotator With PU With Bolt Adjustment 0

Features:

1.The pipe welding rollers product has following different series,say, the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.
2.The series conventional pipe welding rollers stand is able to adopt to various diameter of job, by adjust the center distance of rollers, via reserved screw holes or lead screw.
3.Depends on different application, the roller surface has three types,PU/RUBBER/STEEL WHEEL.
4.The pipe welding rollers is mainly used for Pipe Welding ,tank rolls polishing,turning roller painting and tank turning rolls assembly of cylindrical roller shell.
5.The pipe welding turning roller machine can joint control with other equipments.


Technical Parameters:

Model CR-160

Turning Capacity

160 Ton Maximum

Drive Load Capacity

80 Ton Maximum

Idler Load Capacity

80 Ton Maximum

Adjust Way

Bolt Adjustment

Motor Power

2*4KW

Vessel Diameter

800-5000mm

Rotation Speed

100-1000mm/min

Speed control

Variable frequency driver

Roller wheels

PU

Roller size

Ø500*600mm

Voltage

380v±10% 50Hz 3Phase

Control system

Foot pedal 15m cable

Color

Customized
Warranty 1 Year


Applications:

1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
160T Welding Conventional Pipe Rollers Rotator With PU With Bolt Adjustment 1

Support and Services:
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.


Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4.All package in wooden case for delivery to avoid damage.
5.It will be placed in an anti-rust coating for extra protection and then covered with a thick foam sheet.
6.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.
7.Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.
8. All boxes are labeled with the product name and number, and the shipper's contact information.



FAQ:

  • Q: What is the brand name for the Pipe Welding Rotator?
    A: The brand name for the Pipe Welding Rotator is Weldsuccess.

  • Q: Where is the Pipe Welding Rotator manufactured?
    A: The Pipe Welding Rotator is manufactured in China.

  • Q: What certifications does the Pipe Welding Rotator have?
    A: The Pipe Welding Rotator has ISO/CE/CO certification.

  • Q: What is the minimum order quantity for the Pipe Welding Rotator?
    A: The minimum order quantity for the Pipe Welding Rotator is 1 set.

  • Q: How is the Pipe Welding Rotator packaged?
    A: The Pipe Welding Rotator is packaged in a wooden case.
