500T Pipe Conventional Welding Roller For Pipe Butt With Bolt Adjustment

Name: 500T Pipe Conventional Welding Roller For Pipe Butt With Bolt Adjustment
Brand: Weldsuccess
SKU: HGK-500
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (186 reviews)

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HGK-500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                500T Pipe Welding Roller, Conventional Welding Roller With Bolt Adjustment, 50 Hz Pipe Welding Roller


Turning Capacity:	500 Ton Maximum	Drive Load Capacity:	250 Ton Maximum
Idler Load Capacity:	250 Ton Maximum	Vessel Size:	1200~8500mm
Voltage:	380 V ±10 % 50 Hz 3Phase	Adjust Way:	Bolt Adjustment
Color:	Customized	Warranty:	1 Year

Turning Capacity:	500 Ton Maximum
Drive Load Capacity:	250 Ton Maximum
Idler Load Capacity:	250 Ton Maximum
Vessel Size:	1200~8500mm
Voltage:	380 V ±10 % 50 Hz 3Phase
Adjust Way:	Bolt Adjustment
Color:	Customized
Warranty:	1 Year

500T Pipe Conventional Welding Roller For Pipe Butt With Bolt Adjustment

Product Description:

1.Our pipe welding rotators pack One drive piece roller & one idler piece roller together as one set for sale.

2.Our tank tuning rolls' drive rotation speed is in digital readout.

3.Top-class electronic components from Schneider to ensure long time using life

4.Remote hand control, Radio hand control & Foot pedal control are all avaialble.

5.100% new from original manufacturer

6. If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.

Features:

1.The pipe welding rollers product has following different series,say, the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.

2.The series conventional pipe welding rollers stand is able to adopt to various diameter of job, by adjust the center distance of rollers, via reserved screw holes or lead screw.

3.Depends on different application, the roller surface has three types,PU/RUBBER/STEEL WHEEL.

4.The pipe welding rollers is mainly used for Pipe Welding ,tank rolls polishing,turning roller painting and tank turning rolls assembly of cylindrical roller shell.

5.The pipe welding turning roller machine can joint control with other equipments.

Technical Parameters:

Model	CR-500
Turning Capacity	500 Ton Maximum
Drive Load Capacity	250 Ton Maximum
Idler Load Capacity	250 Ton Maximum
Adjust Way	Bolt Adjustment
Motor Power	2*11KW
Vessel Diameter	1200-8500mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	Steel Material
Roller size	Ø800*400mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 15m cable
Color	Customized
Warranty	1 Year

Applications:

1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job

Support and Services:

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.

4.All package in wooden case for delivery to avoid damage.

5.It will be placed in an anti-rust coating for extra protection and then covered with a thick foam sheet.

6.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.

7.Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

8. All boxes are labeled with the product name and number, and the shipper's contact information.

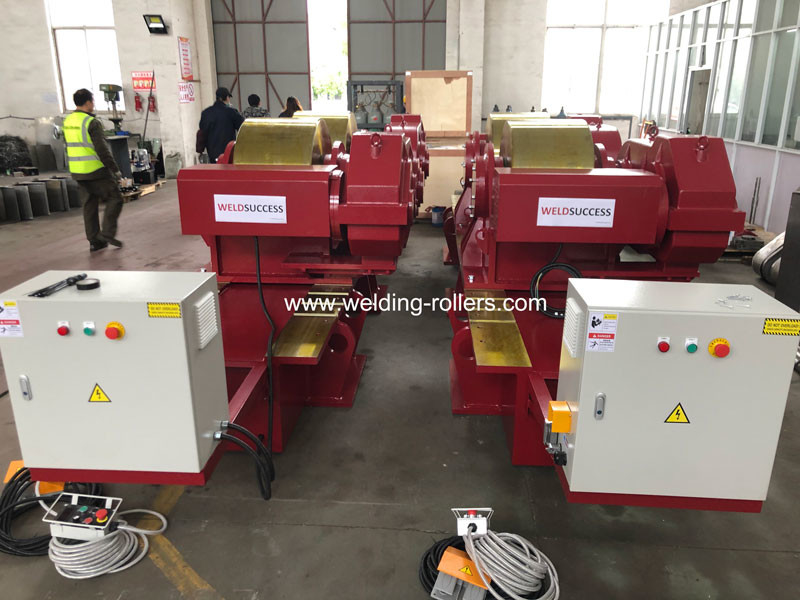

500T Pipe Conventional Welding Roller For Pipe Butt With Bolt Adjustment 1

FAQ:

Q: What is the brand name for the Pipe Welding Rotator?
A: The brand name for the Pipe Welding Rotator is Weldsuccess.

Q: Where is the Pipe Welding Rotator manufactured?
A: The Pipe Welding Rotator is manufactured in China.

Q: What certifications does the Pipe Welding Rotator have?
A: The Pipe Welding Rotator has ISO/CE/CO certification.

Q: What is the minimum order quantity for the Pipe Welding Rotator?
A: The minimum order quantity for the Pipe Welding Rotator is 1 set.

Q: How is the Pipe Welding Rotator packaged?
A: The Pipe Welding Rotator is packaged in a wooden case.
