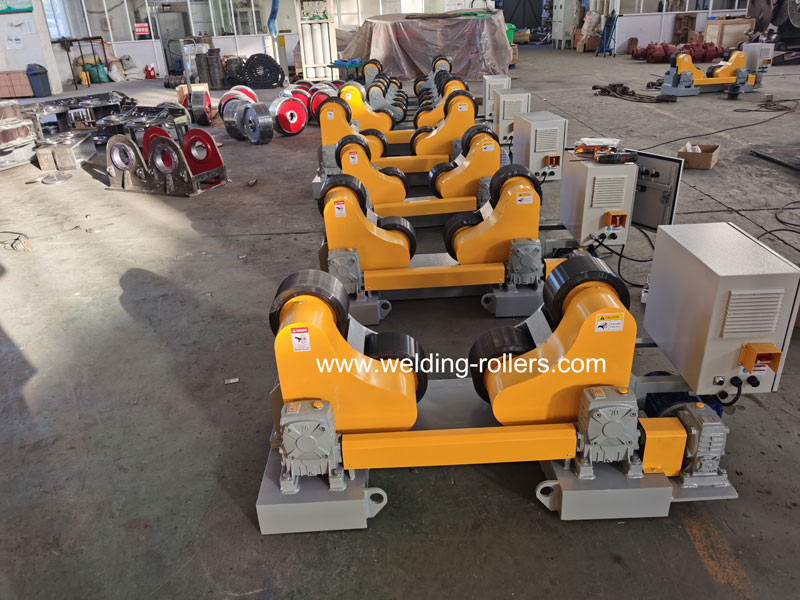

10 Ton Pipe Rotator Self Aligning For Wind Tower

Name: 10 Ton Pipe Rotator Self Aligning For Wind Tower
Brand: Weldsuccess
SKU: SAR-10
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (147 reviews)

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: SAR-10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                10 ton pipe rotator, wind tower self aligning pipe rotator, 10 ton tank turning rollers


Turning Capacity:	10 Ton Maximum	Name:	Tank Turning Rolls
Vessel Diameter:	320~2800 Mm	Adjust Way:	Self Aliging Roller
Application:	Wind Tower Pipeline	Roller Size:	Ø300*150mm
Motor Power:	1.1KW	Speed Control:	Variable Frequency Driver
Control System:	Foot Pedal 8m Cable	Voltage:	380 V ±10 % 50 Hz 3Phase

Turning Capacity:	10 Ton Maximum
Name:	Tank Turning Rolls
Vessel Diameter:	320~2800 Mm
Adjust Way:	Self Aliging Roller
Application:	Wind Tower Pipeline
Roller Size:	Ø300*150mm
Motor Power:	1.1KW
Speed Control:	Variable Frequency Driver
Control System:	Foot Pedal 8m Cable
Voltage:	380 V ±10 % 50 Hz 3Phase

10 Ton Pipe Rotator Self Aligning For Wind Tower

10 ton self aligning tank turning rolls,welding rollers stands for wind tower

Product Description:

1.The vessel diameter range lies within 320-2800 mm .

2.One set powered / One set idler / Electric control system.

3.Customers can customize 10 ton self - aligning welding rotators to their specifications.

4.10 ton Self - aligning welding rotator can controlled by handbox and foot pedal.

5.Rubber wheel or steel wheel following your repuire

6.Self - aligning welding rotator is easy to operate.

Features:

1. It will adjust the tank diameters automatically.

2. Wireless control is more convenient than remote control cable.

3. Can make work piece at optimum welding position (turning roll).

4. Low noise transmission and stable turning roller during working.

Technical Parameters:

Model	HGZ-10
Turning Capacity	10 ton maximum
Drive Load Capacity	5 ton maximum
Idler Load Capacity	5 ton maximum
Adjust Way	Self aliging roller
Motor Power	1.1KW
Vessel Diameter	320~2800 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø300*150mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 8m cable
Color	Customized
Warranty	One Year

Applications:

1. Pressure vessel;

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job

Support and Services:

1. We offer a one-year warranty on your Tank Turning Rolls.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. The Tank Turning Rolls will be securely packaged and shipped in a wooden crate.

2. Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

3. All boxes are labeled with the product name and number, and the shipper's contact information.

4. Seaway is the most common transportation way for oversea trading.

5. Depends on your location, combined transport by rail and sea is also an option.

6. Certainly railway transportation is also acceptable if it is the most suitable approach.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Roller.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
