Product Details
Place of Origin: China
Brand Name: WELDSUCCESS
Certification: ISO / CE / CO
Model Number: CR-100
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 2 week
Payment Terms: T/T, L/C, D/A
Supply Ability: 1 Sets Per Month
Turning Capacity: |
100 Ton Maximum |
Drive Load Capacity: |
50 Ton Maximum |
Idler Load Capacity: |
50 Ton Maximum |
Adjust Way: |
Bolt Adjustment |
Motor Power: |
2*3 KW |
Vessel Diameter: |
800-5000mm |
Rotation Speed: |
100-1000mm/min |
Voltage: |
380 V ±10 % 50 Hz 3 Phase |
Roller Wheels: |
PU Or Steel Or Rubber Available |
Turning Capacity: |
100 Ton Maximum |
Drive Load Capacity: |
50 Ton Maximum |
Idler Load Capacity: |
50 Ton Maximum |
Adjust Way: |
Bolt Adjustment |
Motor Power: |
2*3 KW |
Vessel Diameter: |
800-5000mm |
Rotation Speed: |
100-1000mm/min |
Voltage: |
380 V ±10 % 50 Hz 3 Phase |
Roller Wheels: |
PU Or Steel Or Rubber Available |

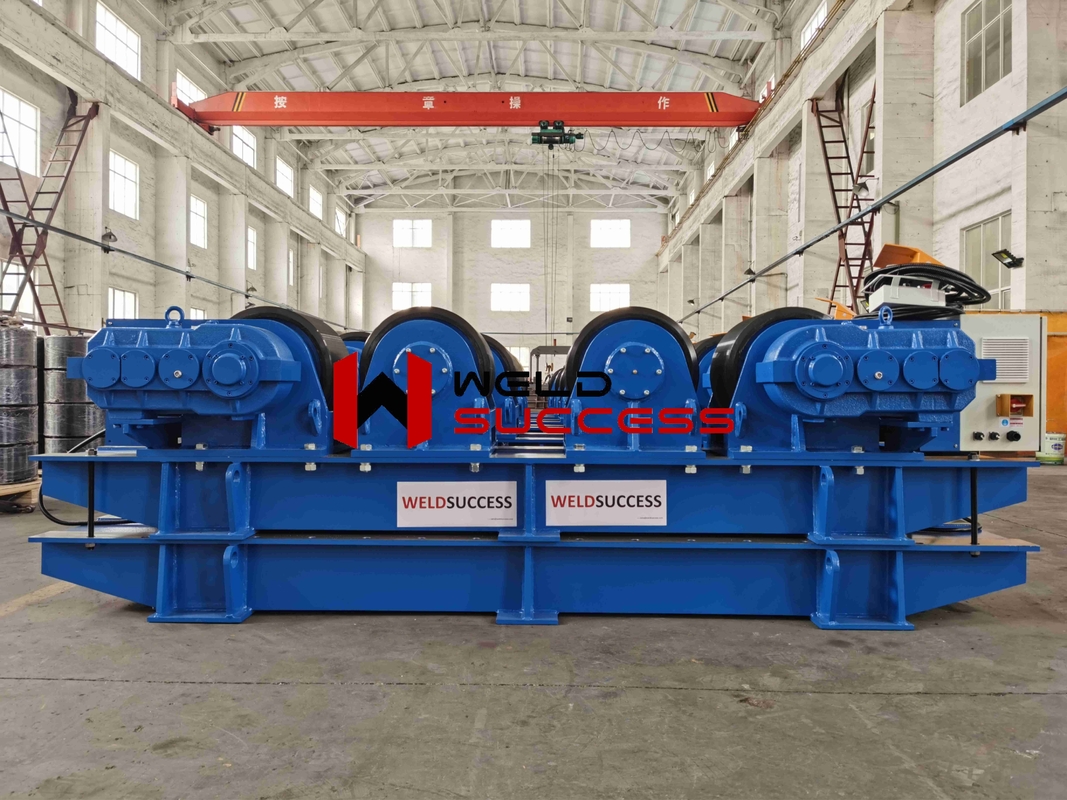

The 100-ton conventional welding rotator typically features a set of adjustable rollers or wheels that support and rotate the workpiece. These rollers can be manually adjusted to accommodate different sizes and diameters of workpieces. The rotator usually comprises multiple sets of rollers to ensure stable support and rotation for the heavy workpiece.
The 100-ton conventional welding rotator is commonly used in heavy-duty welding projects, such as the fabrication of large pressure vessels, tanks, and other substantial cylindrical workpieces. It provides stable rotation, allowing welders easy access to different areas of the workpiece and facilitating efficient and precise welding.
