FT-60 Hydraulic Welding Rotator For Pipe Butt

Product Details

Place of Origin: China

Brand Name: WELDSUCCESS

Certification: ISO / CE / CO

Model Number: FT-60

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 4 WEEK

Payment Terms: T/T, L/C, D/A

Supply Ability: 1 Sets Per Month

Get Best Price
Highlight:

FT-60 Hydraulic Welding Rotator

,

Pipe Butt Hydraulic Welding Rotator

,

Pipe Butt Welding Rotator

Turning Capacity:
Idler Support
Load Capacity:
60 Tons Maximum (60 Tons Each)
Adjust Way:
Hydraulic Up / Down
Vessel Size:
500-4000mm
Motor Power:
2*3 KW
Voltage:
380V±10% 50Hz 3Phase
Turning Capacity:
Idler Support
Load Capacity:
60 Tons Maximum (60 Tons Each)
Adjust Way:
Hydraulic Up / Down
Vessel Size:
500-4000mm
Motor Power:
2*3 KW
Voltage:
380V±10% 50Hz 3Phase

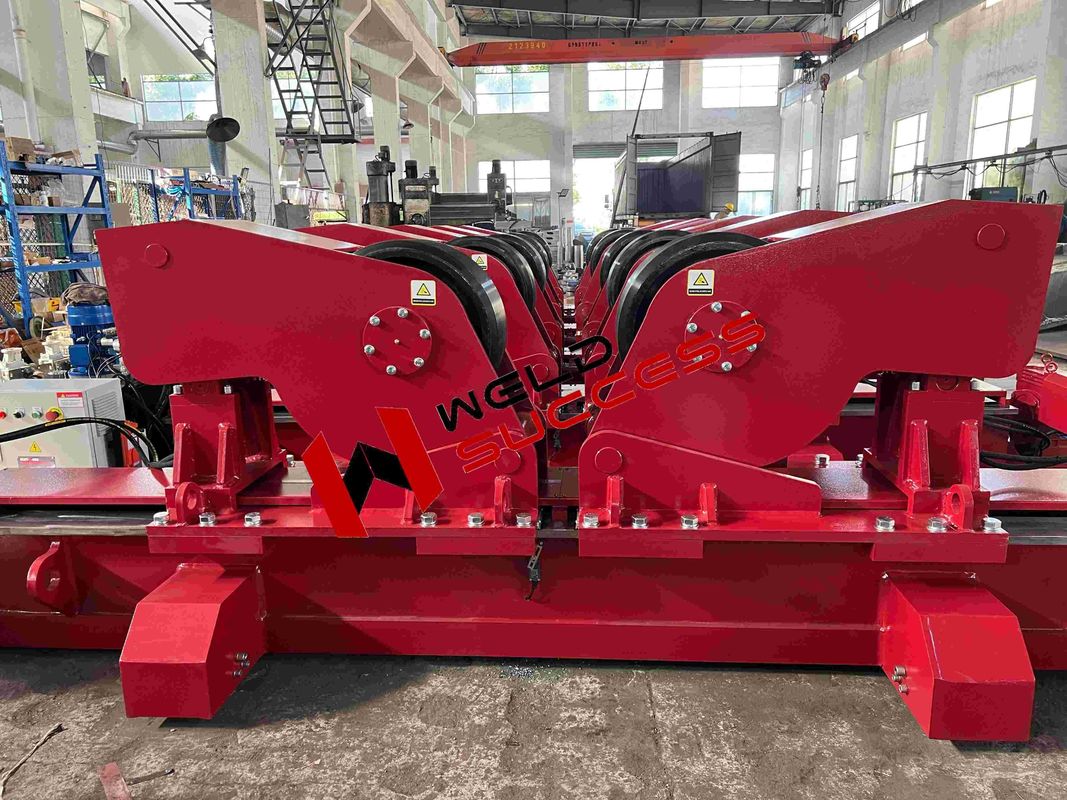

FT-60 Hydraulic Welding Rotator For Pipe Butt


✧ Introduction

1. Hydraulic welding rotators adjust by oil cylinder for serveral single pipes welding together.
2. Fit up welding rotator with jacking system up / down by wireless hand control during butt welding.
3. Horizontal adjust fit up welding rotators also available for butt welding.
4. Fit up welding rotators with hydraulic jacking system but only idler turning.
5. Using together with self aligning welding rotator or conventional welding rotators together.
6. Hydraulic welding rotator with jacking system,fit up welding rotators with wireless hand control.

FT-60 Hydraulic Welding Rotator For Pipe Butt 0

FT-60 Hydraulic Welding Rotator For Pipe Butt 1

✧ Feature

1.Both sections have a free multi-dimensional adjustment capability.
2.The adjustment work is more flexible and can better accommodate different types of welding seam status.
3.The hydraulic V-wheel facilitates the axial movement of the tower.
4.It could greatly improve the working efficiency for thin wall thickness and large pipe diameter production.
5.Hydraulic Fit Up Rotator consists of a 3D adjustable shift rotator, a hydraulic working station with effective control.
6.Rotator base is made of welded plate, with a higher strength to ensure no curvature occurs over a period of time.
7.Rotator base & boring is an embedded process to ensure precise rotation of the roller.
