5-Ton Horizontal Turning Table With Remote Hand Control

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HB-10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Packed in wooden case / Container

Delivery Time: 20 working days after received your payment

Payment Terms: TT / 30 % payment in advance

Supply Ability: 5 sets per month

Get Best Price
Highlight:
Load Capacity:
5T
Other Name:
Welding Turntable
Table Diameter:
1000mm
Rotation Speed:
0.05-0.5 Rpm
Rotation Power:
1.1 Kw
Control Way:
Remote Hand Control + Foot Pedal
Input Voltage:
110V ~ 575V Single/3 Phase 50/60Hz
Color:
Customized
Other Name:
Welding Positioner
Load Capacity:
5T
Other Name:
Welding Turntable
Table Diameter:
1000mm
Rotation Speed:
0.05-0.5 Rpm
Rotation Power:
1.1 Kw
Control Way:
Remote Hand Control + Foot Pedal
Input Voltage:
110V ~ 575V Single/3 Phase 50/60Hz
Color:
Customized
Other Name:
Welding Positioner
5-Ton Horizontal Turning Table With Remote Hand Control

5-ton horizontal turning table is a specialized piece of industrial equipment designed to provide precise rotational control for large and heavy workpieces weighing up to 5 metric tons (5,000 kg) during various machining, fabrication, and assembly processes.

Key features and capabilities of a 5-ton horizontal turning table include:

Load Capacity:
The turning table is engineered to handle and rotate workpieces with a maximum weight of 5 metric tons (5,000 kg).
This load capacity makes it suitable for a wide range of applications in the manufacturing and fabrication of heavy-duty components, such as large machinery parts, structural steel elements, and medium-sized pressure vessels.
Horizontal Rotational Mechanism:
The 5-ton horizontal turning table features a robust, heavy-duty turntable or rotational mechanism that is designed to operate in a horizontal orientation.
This horizontal configuration allows for easy loading, manipulation, and precise positioning of the workpiece during various machining, welding, or assembly operations.
Precise Speed and Position Control:
The turning table is equipped with advanced control systems that enable precise control over the speed and position of the rotating workpiece.
Features like variable speed drives, digital position indicators, and programmable control interfaces allow for accurate and repeatable positioning of the workpiece.
Stability and Rigidity:
The horizontal turning table is constructed with a sturdy and stable frame to withstand the significant loads and stresses associated with handling 5-ton workpieces.
Reinforced foundations, heavy-duty bearings, and a robust base contribute to the overall stability and reliability of the system.
Integrated Safety Systems:
Safety is a critical consideration in the design of a 5-ton horizontal turning table.
The system is equipped with comprehensive safety features, such as emergency stop mechanisms, overload protection, operator safeguards, and advanced sensor-based monitoring systems to ensure safe operation.
Versatile Applications:
The 5-ton horizontal turning table can be used for a variety of industrial applications, including:
Machining and fabrication of large components
Welding and assembly of heavy-duty structures
Precision positioning and alignment of heavy workpieces
Inspection and quality control of large industrial parts
Customization and Adaptability:
5-ton horizontal turning tables can be customized to meet the specific requirements of the application and the workpiece dimensions.
Factors such as the size of the turntable, the rotational speed, the control interface, and the overall system configuration can be tailored to the project's needs.
Improved Productivity and Efficiency:
The precise positioning and controlled rotation capabilities of the 5-ton horizontal turning table can significantly enhance productivity and efficiency in various manufacturing and fabrication processes.
It reduces the need for manual handling and positioning, allowing for more streamlined and consistent production workflows.
These 5-ton horizontal turning tables are commonly used in industries such as heavy machinery manufacturing, structural steel fabrication, pressure vessel production, and large-scale metal fabrication, where the precise handling and processing of heavy workpieces are essential.

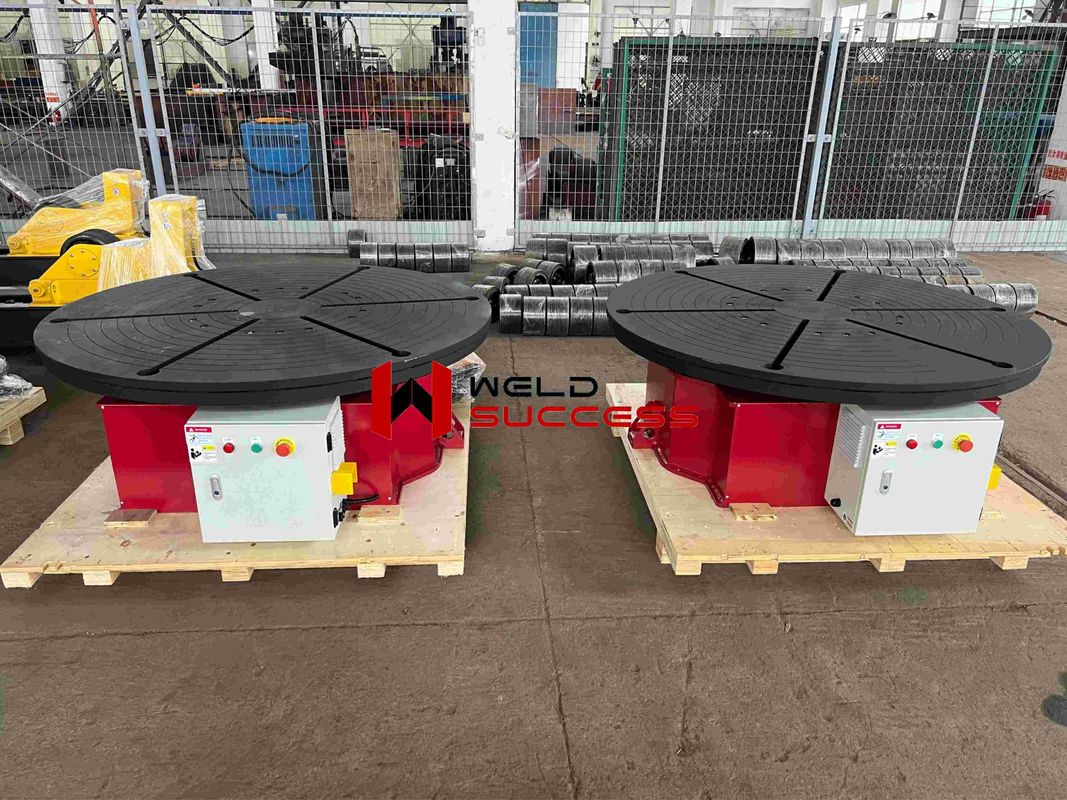

5-Ton Horizontal Turning Table With Remote Hand Control 0
