Product Details:
Payment & Shipping Terms:
|
| Max Capacity: | 10 T | Adjust Way: | Bolt Adjustment |
|---|---|---|---|
| Name: | Conventional Welding Rotator | Control Way: | Wireless Hand Control Box |
| Cable Length: | 5 M | Turning Speed: | 0 - 1000 Mm/min |
| Motor Power: | 2 * 0.75 KW | Application: | Pipe Roller Stands |
| Type: | Tank Turning Rolls | ||
| High Light: | pipe welding rollers,pipe turning rollers |
||

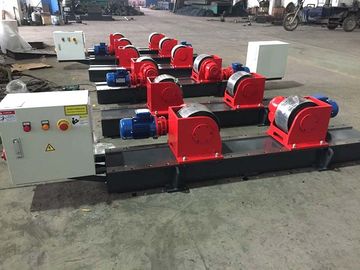

Bolt Adjustment Tank Turning Rolls, Heavy Duty Roller Stand , Hand Control Box Conventional Welding RotatorMore products pics.pdf
Bolt Adjustment Tank Turning Rolls Description
1. Fully equipments with CE Certificate.
2. The production is according with mechanical standard JB/T 9187-1999.
3. The favourable price performance ratio yields will ensure a quick payback of your investment.
4. We also provide tailor-made tank turning roll according to your special requirements.
Tank Turning Rolls Stands Specification
|
Model |
HGK - 5 |
HGK - 10 |
HGK - 20 |
HGK - 30 |
HGK - 40 |
||
|
Max Capacity |
5 T |
10 T |
20 T |
30 T |
40 T |
||
|
Roller Diameter (mm) |
250 |
300 |
350 |
350 |
400 |
||
|
Roller Width (mm) |
140 |
170 |
180 |
180 |
200 |
||
|
Working Range (mm) |
250-2800 |
300-3200 |
500-4500 |
500-4500 |
500-4800 |
||
|
Roller Speed (mm/min) |
1 - 1000 |
||||||
|
Motor Power (kw) |
2 * 0.37 |
2 * 0.55 |
2 * 1.1 |
2 * 1.5 |
2 * 1.5 |
||
|
Option : |
□ Bolt Adjustment □ Lead Screw Adjustment |
||||||
Other types option
1. We also supply the self-alignment, the vehicle used, the tilting and the anti-drift types tank turning rolls
2. Bolt adjustable tank turning roll can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable tank turning roll is also available.
4. The tank turning rolls is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used tank turning roll is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.
Tank Turning Rolls Details parts brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor
3. Cable / Shuntian Reducer
4. Schneider / Siemens electric system
Tank Turning Rolls Packing And Transportation
1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service
1. We provide 12month guaranty period for the whole tank turning rolls quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Installation
1. Normally the tank turning rolls shipped with fully installation.
2. It's easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
