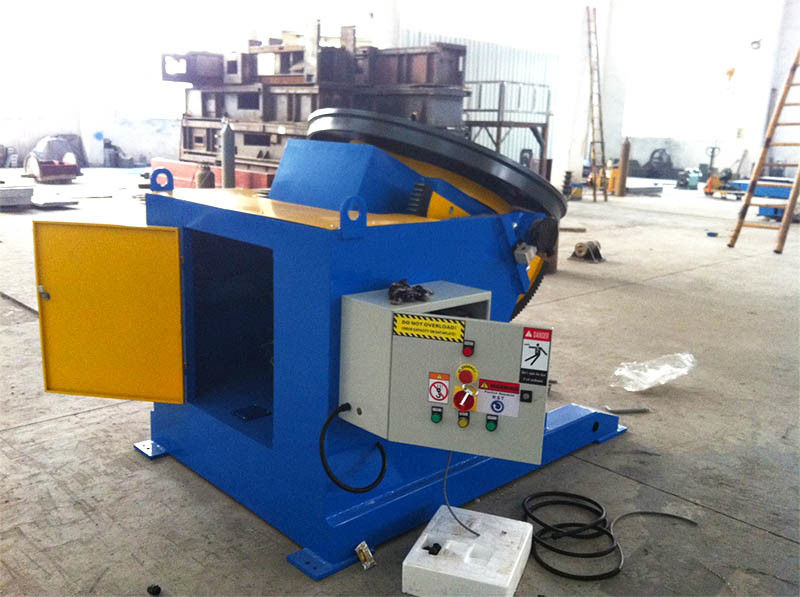

Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding

Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding
Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding

Large Image :  Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: CE / ISO / CO
Model Number: HBJ - 30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/A
Supply Ability: 3 Set Per Month
Detailed Product Description
Max Capacity: 6500 Lbs Tilting Angle: 0 - 90 / 0 - 120
Package: Wooden Case Door To Door Service: Supported
Delivery Way: By Sea Voltage: 220V / 380V / 400V / As Per Required
Name: Welding Turn Table Application: Joint Welding Manipulator
High Light:

welding rotating table

,

tilting welding table

Wireless Control Tilting Automatic Welding Turn Table for Axis / Tray / Ppipe Welding



Welding Positioners / Welding Turn Table Description

1. welding turn table is composed of worktable rotating unit and tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at ideal position .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .

4. This equipment can coordinate with different automatic welding and manual welding, pipe longitudinal

joint, and end welding, all kinds axis, tray, pipe welding, which with compact structure, small size, beauty

appearance, light, and easy for operation.



Here Below Are Some Models Welding Turn Table Specification

Model

HBJ - 30

HBJ - 50

HBJ - 100

HBJ - 150

HBJ - 200

Max Capacity

3 T

5 T

10 T

15 T

20 T

Table Diameter (mm)

1400

1500

2000

2200

2500

Rotation Power (kw)

1.5

3

3

3

4

Rotation Speed (rpm)

0.05-0.5

Tilting Power (kw)

2.2

3

4

5.5

7.5

Tilting Angle (°)

0 - 120

Tilting Speed (kw)

0.23

0.14

Option:

□ Foot Pedal           □ Wireless Control         □ Tilting Angle 135°



Pipe Welding Turn Table Competitive Advantage

1. All our pipe welding turn table have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.

5. All famous details part brands. Danfoss / Yaskawa / Invertek / Siemens etc.



Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding 0



Packing things

1. Welding turn table positioner (including machine frame, worktable, etc) 1set

2. Electric control system (including electric control cabinet,remote control box and foot

3. Technical documents (with manual book, conformity certificate, packing list, etc) 1set

4. Welding chuks if you ordered.



Installation and commissioning For Welding Turn Table

1. Normally it is easy to installation, we will installtion well then package for delivery. Also we will supply you

all the details installation drawings.

2. If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.



Wireless Control Tilting Automatic Welding Rotary Table for Axis / Tray / Ppipe Welding 1
