Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO/CE/CO
Model Number: HBJ - 12
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 20 working days after received your payment
Payment Terms: TT / 30 % payment in advance
Supply Ability: 5 sets per month
Max Capacity: |
1200 Kg |
Name: |
Pipe Welding Positioner |
Type: |
Automatic Positioner |
Feature: |
Speed Digital Readout |
Worktable Diameter: |
1400mm |
Tilting Angle: |
0~120° |
Application: |
Automatic Welding |
Control Way: |
Hand Control & Foot Pedal |
Max Capacity: |
1200 Kg |
Name: |
Pipe Welding Positioner |
Type: |
Automatic Positioner |
Feature: |
Speed Digital Readout |
Worktable Diameter: |
1400mm |
Tilting Angle: |
0~120° |
Application: |
Automatic Welding |
Control Way: |
Hand Control & Foot Pedal |

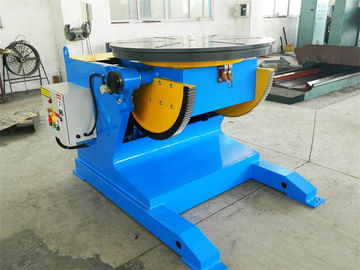

1200kg Rotary Pipe Welding Positioner,Automatic Positioner With Speed Digital Readout,CE Supported
Description
1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.
3. Can help for all types of manual welding and auto-welding.
4. Controlled by step-less frequency conversion.
5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.
Specifications
|
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
|
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
|
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
|
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
|
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
|
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
|
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
||||
Competitive Advantage
1. It’s easy to control with electric cabinet and hand control panel
2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
Clamps for reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Special clamps can be designed according to your work piece detail drawings.
Certificate and Company Work Shop
1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. If want door to door price, please advise us your detail adress.
Installation
1. Fully installated then packaged in wooden case.
2. Engineers door to door service available.
SO JUST SEND YOUR INQUIRY NOW.
