Home > products > Tank Turning Rolls > Bolt Adjustment Tank Turning Rolls , Welding Pipe Rollers With PU Material

Bolt Adjustment Tank Turning Rolls , Welding Pipe Rollers With PU Material

Product Details

Place of Origin: China

Brand Name: WeldSuccess

Certification: ISO / CE / CO

Model Number: HGK - 10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 10 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

welding turning rolls

,

pipe turning rollers

Max Capacity:
10 T = 22000lbs
Adjust Way:
Bolt Adjustment
Name:
Tank Turning Rolls
Roller Material:
PU / Rubber / Steel
Type:
Welding Pipe Rollers
Control Way:
Hand Control Box 5M Cable
Application:
Tank Pipe Stands& Welding
Max Capacity:
10 T = 22000lbs
Adjust Way:
Bolt Adjustment
Name:
Tank Turning Rolls
Roller Material:
PU / Rubber / Steel
Type:
Welding Pipe Rollers
Control Way:
Hand Control Box 5M Cable
Application:
Tank Pipe Stands& Welding
Bolt Adjustment Tank Turning Rolls , Welding Pipe Rollers With PU Material

Bolt Adjustment Movable Tank Turning Rolls , Welding Pipe Rollers With PU Material

More info.pdf



Description

1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P

3. Roller : Rubber / Steel / PU (Polyurethane)

4. Original : Wuxi Success Machinery Equipment Co., Ltd supply the tank turning rolls

5. Condition : New



Attention please

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.

2. If your work piece material is Nonferrous Metals , we suggest PU rollers , more soft .

3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.

4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Specification

Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment



Other information
1. Self aligning tank turning roll is also available.
2. The roller is mainly used for welding & assembling of pressure vessel.
3. Shot blasting used, painting used tank turning roll is also available.
4. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.

5. Fit up rotators is to ensure the butt welding well for auto welding. Available.



Details parts brand

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system

5. All equipments with CE certificates.



Transportation

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4. All package in wooden case for delivery to avoid damage.



After sale service

1. We provide 12month guaranty period for the tank turning rolls quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

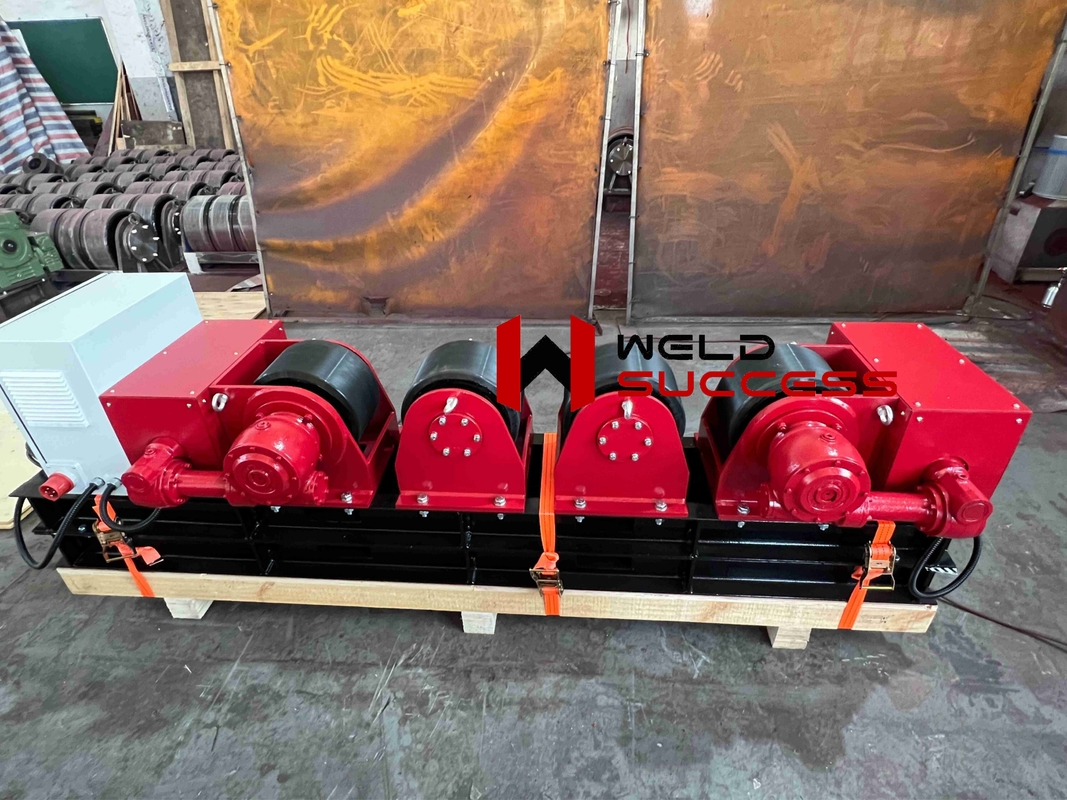

Bolt Adjustment Tank Turning Rolls , Welding Pipe Rollers With PU Material 0



Installation

1. Normally the rotators shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
