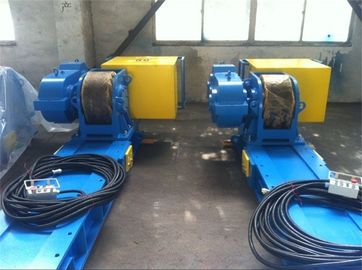

Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control

Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control
Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control

Large Image :  Automatic 80T Conventional Welding Rotator With Double Motors Siemens Control

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 80 T = 17500lbs Adjust Way: Manual Bolt Adjustment
Motor Power: Double Motors / 2 * 3 KW Control Way: Hand Control Box 5M Cable
Rorking Range: Tank Diameter 800 - 5000 Mm Delivery Time: 15 Days
Product: Pipe Welding Rotator
High Light:

heavy duty pipe stands

,

pipe stand roller

Automatic 80T Conventional Pipe Welding Rotator With Double Motors Siemens Control



Pipe Welding Rotator Description



1. Pipe Welding Rotator Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P
3. Roller : Rubber / Steel / PU (Polyurethane)
4. Original : Factory , Wuxi China
5. Condition : New



Attention please



1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning Pipe Welding Rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Pipe Welding Rotator Detail Parameters



Model

HGK-80

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

80 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

 450

 500

 700

 800

 900

Roller Width (mm)

 220

 280

  300

Working Range (mm)

   800-5000

1000-6000

 1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment



Pipe Welding Rotator Competitive Advantage


1. The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.

4. Double motors to ensure turing stably.



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Pipe Welding Rotator After sale service



1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Pipe Welding Rotator Installation



1. Normally the tank turning rolls shipped with fully installation packaged in wooden case.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service for Pipe Welding Rotator.

4. We also supply the door to door delivery service if customers interested.
