65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator

65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator
65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator 65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator

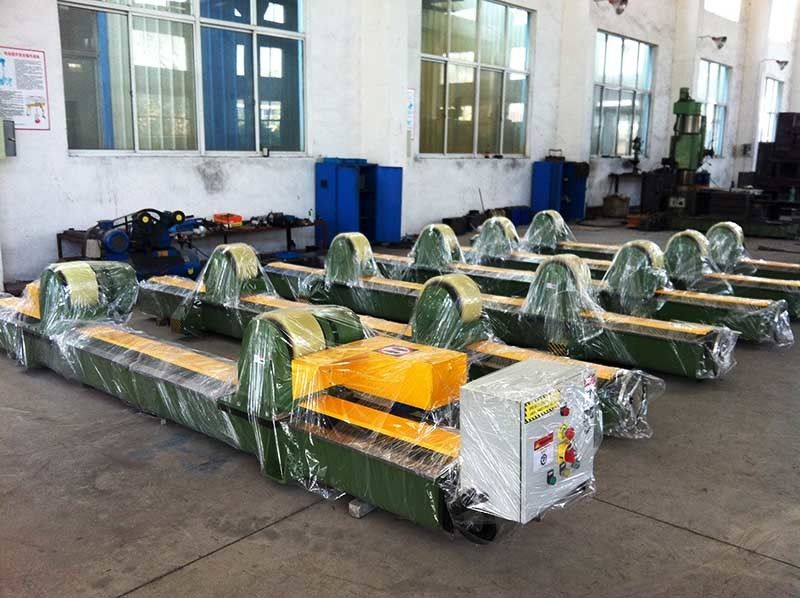

Large Image :  65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 30 T Adjust Way: Lead Screw
Name: Pipe Welding Rotator Application: Pipe Tank Vessels Stand
Cable Length: 5 M / Wireless Control Box Available Turning Speed: 0 - 1000 Mm/min / Digital Display
Motor Power: Double Motor / 2 * 1.5 KW Control Way: Hand Box And Foot Pedal
Type: Pipe Turning Rolls
High Light:

heavy duty pipe stands

,

pipe stand roller

65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator More products pics.pdf



Pipe Welding Rotator Description



1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V   50 / 60 Hz  1P / 3P
3. Roller : Rubber / Steel / PU (Polyurethane)
4. Original : Our Factory , Wuxi China
5. Condition : New / Fully CE supported

6. All the motors and reducer with anti-damage protect cover



Welding Turning Rolls Using Attention please



1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Pipe Welding Rotator / Pipe Stands For Welding Specification



Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment



Other types option



1. We also supply the self-alignment pipe turning rolls , the vehicle used, the tilting and the anti-drift types.
2. Bolt adjustable pipe welding rotators can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable pipe turning rolls is also available.
4. The roller is mainly used for vessels welding & assembling, Shot blasting used, painting .



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system



Pipe Welding Rotators Transportation



1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.



Installation and Guarranty



1. Normally the pipe welding rotators shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.

4. We provide 12month guarranty period for the whole pipe welding rotator quality.



65000lbs Double Motor Pipe Welding Rotator , Foot Pedal Control , 30 Ton Pipe Welding Rotator 0
