Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 60
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Payment Terms: 30% Payment in advance via T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Delivery Time: |
10 - 15 Days |
Max Capacity: |
60 T = 120000lbs |
Name: |
Pipe Welding Rollers |
Adjust Way: |
Automatic Self Aligning |
Control Way: |
Wireless Control / Remote Control Box |
Roller Material: |
Rubber |
Tank Diameter: |
750 - 4800 Mm |
Application: |
Wind Tower |
Delivery Time: |
10 - 15 Days |
Max Capacity: |
60 T = 120000lbs |
Name: |
Pipe Welding Rollers |
Adjust Way: |
Automatic Self Aligning |
Control Way: |
Wireless Control / Remote Control Box |
Roller Material: |
Rubber |
Tank Diameter: |
750 - 4800 Mm |
Application: |
Wind Tower |

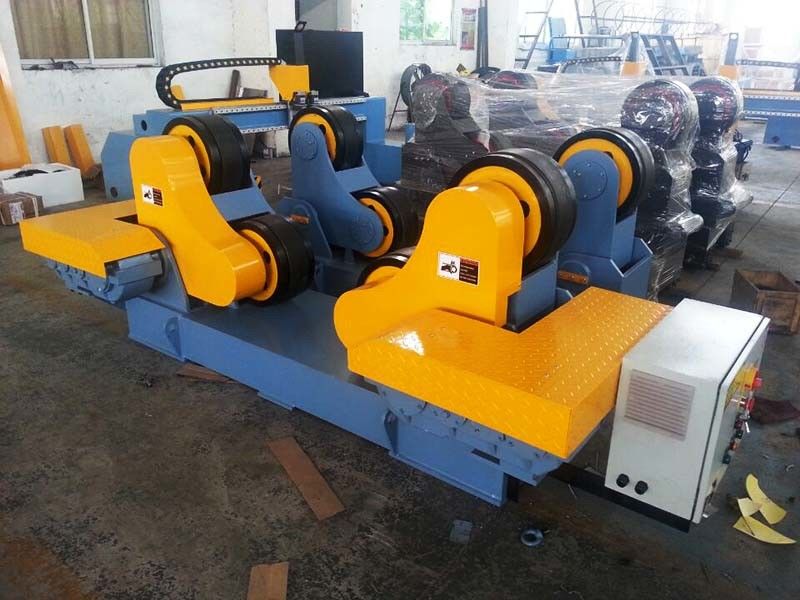

Double Motor 60T Steel Pipe Welding Rollers with Electric Control System CE More products pics.pdf
Model HGZ-60:
Load capacity - Drive: 30 tons maximum
Load capacity - Idler: 30 tons maximum
Load capacity - Set : 60 tons maximum
Rotation capacity : 60 tons maximum
Vessels diameter: Min. 750mm ~ Max.4800mm
Rotation speed: 100~1000 mm/min VFD
Rotation power: 2*2kw with fan cooling
Roller wheels: PU (Polyurethane wheels)
Control way: Remote hand control + Foot pedal
Input Voltage: 110V ~ 575V Single/3 Phase 50/60Hz
Certificate: CE approval
Pipe Welding Rollers Applications
1. For pipe support and turning for auto seam welding.
2. To make wind tower.
3. For auto circle seam welding.
Pipe Welding Rollers Specification
|
Model |
HGZ-60 |
HGZ-80 |
HGZ-100 |
HGZ-150 |
HGZ-200 |
|
Max Capacity |
60 T |
80 T |
100 T |
150 T |
200 T |
|
Roller Diameter (mm) |
450 |
500 |
550 |
550 |
550 |
|
Roller Width (mm) |
120 |
||||
|
Working Range (mm) |
750-4800 |
850-5000 |
1000-5500 |
1200-6500 |
1500-8000 |
|
Roller Speed (m/h) |
1 - 1000 mm/min |
||||
|
Motor Power (kw) |
4 |
4 |
5.5 |
5.5 |
7.5 |
|
Control Way |
Remote hand control + Foot pedal |
||||
Details Control system and Brand On Our Pipe Welding Rollers
1. Inverter is from Taida / Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Supply Ranges
1. Pipe welding rollers consist : One powered roller , One idler roller , Electric control system
2. Adjust way : Adjust the pipe diameter automatically with diameter 750 - 4800 mm
3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
6. Original : Our factory / Wuxi China
Our suggestion
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
