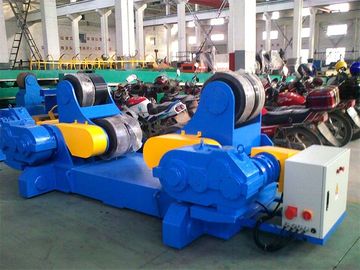

CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter Pipe

CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter  Pipe
CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter  Pipe CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter  Pipe

Large Image :  CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter Pipe

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 20 Days
Payment Terms: 30% Payment in advance via T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 150 T = 330000lbs Name: Pipe Welding Rotator
Adjust Way: Automatic Self Adjustment Roller Material: Rubber
Feature: One Roller Consist Of 2 Pieces Advantage: More Steady While Turning
Tank Diameter: 1200 - 6500 Mm / 47 - 255 Inches Application: Tank Pipe Wind Tower
High Light:

pipe turning rolls

,

pipe stand roller

CE Rubber Automatic Pipe Welding Rotators for Welding 47 - 255 Inches Diameter Pipe



More products pics.pdf



Pipe Welding Rotators Using Attention



If you have any special request , just advise us ,here is our suggestion :

1. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.

2. All our pipe turning rolls have 20% over weight design, but we suggest used on the safety rangs.

3. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.

4. Just advise me your desitination port then we will give you the final CIF price.



Self Aligning Pipe Welding Rotator Supply Ranges



1. Consist : One powered roller , One idler roller , Electric control system

2. Pipe welding rotator adjust way : Adjust the pipe diameter automatically with diameter 47 - 255 inches

3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available

4. Control Way : Remote hand control box / Wireless hand control box

5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )

6. Original : Our factory / Wuxi China



Pipe Welding Rotator / Pipe Rollers For Welding Specification



Model

HGZ-60

HGZ-80

HGZ-100

HGZ-150

HGZ-200

Max Capacity

60 T

80 T

100 T

150 T

200 T

Roller Diameter (mm)

 450

 500

 550

 550

 550

Roller Width (mm)

 120

Working Range (mm)

750-4800

850-5000

1000-5500

1200-6500

1500-8000

Roller Speed (m/h)

1 - 1000 mm/min

Motor Power (kw)

4

4

5.5

5.5

7.5

Option :

□ Moving wheels       □ Wireless Control      □ Remote Control


Pipe Welding Rotator Applications



1. If you want moving function , just send us one email.

2. For big tank seam welding after plate rolling.

3. For single tanks butt welding to be the big one pipe.



More Questions Customers May Concerned



Q : What about the transportion?

A : 1. Fully packaged in wooden case to anti damage during the transportational process .

     2. Usually we take seaway ,cause its more convenient and cheaper for big machine.

     3. Door to door delivery service is also available.



Q : What is your warranty and after sale service ?

A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.

     2. If you have any questions on the installation , you will get our engineers respond within 24 hours.



Pipe Welding Rotator Details Control system and Brand



1. Inverter is from Taida / Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider



CE Rubber Automatic Pipe Rotators for Welding 47 - 255 Inches Diameter  Pipe 0
