Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System

Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System
Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System

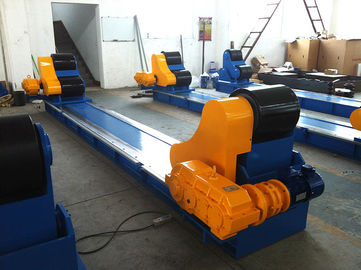

Large Image :  Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 20 Days
Payment Terms: 30% Payment in advance via T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 80 T = 175000lbs Product: Tank Turning Rolls
Adjust Way: Automatic Self Adjustment / Bolt Adjustment Roller Material: PU
Feature: Large Working Range Name: Welding Rotator
Tank Diameter: 500 - 8000 Mm / 20 - 320 Inches Application: Heavy Duty Pressure Vessesls
High Light:

welding turning rolls

,

pipe turning rollers

Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System



Special Design

1. This self aligning rotator is special designed for small and big tank together.

2. The rollers can move inside to suit the small diameter tank. Move outside to suit big diameter tank.

3. When it get the great position , it will adjust the pipe position automatically.



Supply Ranges

1. Consist : One powered roller , One idler roller , Electric control system

2. Adjust way : Adjust the pipe diameter automatically with diameter 20 - 320 inches

3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available

4. Control Way : Remote hand control box / Wireless hand control box

5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )

6. Original : Our factory / Wuxi Success Machinery Equipment Co Ltd / Tank Turning Rolls



Specification

Model

HGZ-60

HGZ-80

HGZ-100

HGZ-150

HGZ-200

Max Capacity

60 T

80 T

100 T

150 T

200 T

Roller Diameter (mm)

 450

 500

 550

 550

 550

Roller Width (mm)

 120

Working Range (mm)

750-4800

850-5000

1000-5500

1200-6500

1500-8000

Roller Speed (m/h)

1 - 1000 mm/min

Motor Power (kw)

4

4

5.5

5.5

7.5

Option :

□ Moving wheels       □ Wireless Control      □ Remote Control


Applications

1. If you want moving function , just send us one email.

2. For big tank seam welding after plate rolling.

3. For single tanks butt welding to be the big one pipe.



More Questions Customers May Concerned

Q : What about the transportion of the tank turning rolls?



A : 1. Fully packaged in wooden case to anti damage during the transportational process .

     2. Usually we take seaway ,cause its more convenient and cheaper for big machine.

     3. Door to door delivery service is also available.



Q : What is your warranty and after sale service of the tank turning rolls?



A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.

     2. If you have any questions on the installation , you will get our engineers respond within 24 hours.



Details Control system and Brand

1. Inverter is from Taida / Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider



Heavy Duty Tank Turning Rolls with Automatic Bolt Adjustment Electric Control System 0



Our suggestion

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment welding rotator / Lead Screw adjustment welding rotator/ Fit up welding rotators all available.


DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
