Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication

Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication
Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication

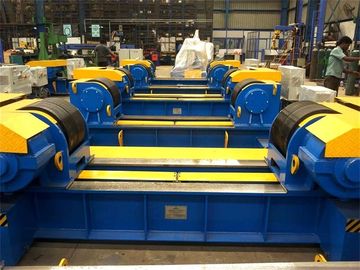

Large Image :  Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 80 T = 17500lbs Adjust Way: Manual Bolt Adjustment
Motor Power: Double Motors / 2 * 3 KW Control Way: Hand Control Box 5M Cable
Rorking Range: Tank Diameter 800 - 5000 Mm Name: Tank Turning Rolls
Wheel Material: PU Application: Pipe Stands & Tank Welding Fabrication
High Light:

welding turning rolls

,

pipe welding rollers

Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication



Description

1. Set includes 1 drive and 1 Idler
2. Add a second idler for a total capacity of 180,000 lb.
3. 17" diameter x 8" wide rubber wheels
4. 6" to 20' diameter capacity
5. Variable speed from 0 - 40 IPM
6. Set includes a remote pendant control
7. Voltage : 110 V - 600 V all available
4. Original : Wuxi Success Machinery Equipment Co., Ltd / Tank Turning Rolls
5. Condition : New



Attention please

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Detail Parameters

Model

HGK-80

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

80 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

 450

 500

 700

 800

 900

Roller Width (mm)

 220

 280

  300

Working Range (mm)

   800-5000

1000-6000

 1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment



Competitive Advantage
1. The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.

4. Double motors to ensure turing stably.



Details parts brand for tank turning rolls

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Transportation

1. Firstly , all of our equipments will be packaged in wooden case before delivery.

2. Door to door delivery service is also available , but we have to know your detail address.

3. Seaway is the most common transportation way for oversea trading.

4. Depends on your location, combined transport by rail and sea is also an option.

5. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Manual Bolt Adjustment 80 Ton Vessel Turning Rollers Pipe Stands For Tank Welding Fabrication 0



Installation of tank turning rolls

1. Normally the tank turning rolls shipped with fully installation packaged in wooden case.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service.

4. We also supply the door to door delivery service if customers interested.



PLEASE SNED US YOUR INQUIRY FOR MORE INFO NOW.
