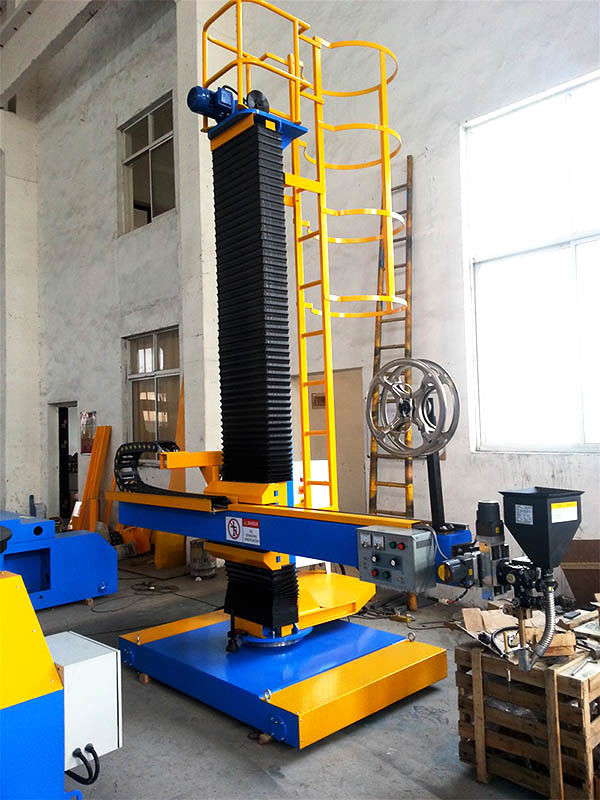

High Effective Column And Boom Manipulator With Two Welding Head On The Boom

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Effective Column And Boom Manipulator With Two Welding Head On The Boom

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 5050
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Detailed Product Description
Voltage: 110 V - 600 V Tank Diameter: 5000 Mm
Tank Length: 5000 Mm Name: Welding Manipulator
Moving Way: Stationary / Motorized Moving Detail Parts: Fulx Recovery Machine / Cross Slides
Delivery Time: 25 Days
High Light:

column and boom manipulator

,

column boom welding machine

High Effective Column And Boom Manipulator With Two Welding Head On The Boom



Welding Manipulator Description

1. Strong design with 5000 lifting and retracting stroke.
2. With ±180° rotation , manual or motorized rotation are all available.
3. All vertical and horizontal guidings are precisely machined for smooth movement.
4. Boom end with the cross-slides to auto adjust the welding position.


Here Below is Some Standard Welding Manipulator Specifications

Model

LHC-4040

LHC-5050

LHC-6060

LHC-8080

Effective Vertical Lifting Stroke of Boom (mm)

4000

5000

6000

8000

Effective Horizontal Retracting Stroke of Boom (mm)

4000

5000

6000

8000

Boom Lifting speed (mm/min)

1

Boom Retracting speed (mm/min)

0.12-1.2

Column Rotation Angle (°)

□  Stationary             □  ±180°

Column Rotation Way (rpm)

□ Stationary    □ Manual    □ Motorized(0.1)

Trolley Traveling Way (mm/min)

   □ Stationary    □ Manual    □ Motorized(1.5/3)

Option :

 □ Seam Tracker     □ Flux recovery machine

   Welding Source  □ Chinese   □ Lincoln Brand



Advantages Of Welding Manipulator

1. In laser vision tracking, a laser sensor is positioned a short distance ahead of the welding torch.

2. Before welding begins, the sensor will search for a feature, the weld seam for example, and make two or three measurements to identify position and orientation.

3. Triangulation is used for measurements therefore some kind of physical feature is needed for the laser sensor to take measurements. In welding, a physical feature can be a gap, mismatch, an edge, etc. and depending on the sensor, even very small features (around 0.2mm) can be tracked.

4. A comparison is made between the measured position of the feature and a pre-taught position and if there is a difference, correction co-ordinates are sent to the slides or to the controller positioning the robot to place the welding torch correctly at the start of and during welding.

5. This results in welds of higher quality that are always in the right place



Welding Manipulator More Details

1. Any style of welding manipulator head including SAW, FCAW,MIG etc. integrated with Lincoln, Miller or Fronius.
2. For all submerged arc processes, flux recovery options available to customer requirement.
3. Fully programmable oscillator, compact/small bore, or regular powered 6″”x6″” cross-slides.

4. Many variations in speeds, controls, and welding equipment can be fitted to a column and boom welding manipulator.

5. Both gear elevated and chain drive lifts are available to meet your needs.

6. Manual or powered track drive.



High Effective Column And Boom Manipulator With Two Welding Head On The Boom 0



Installation and warranty

1. We will send you all the installation docs together with the customs doucs.

2. Our engineer is also supply the door to door installation service if needed.

3. Fully equipments with one year warranty.

4. Specially-engineered column and boom welding manipulators are available, please email us to discuss.
