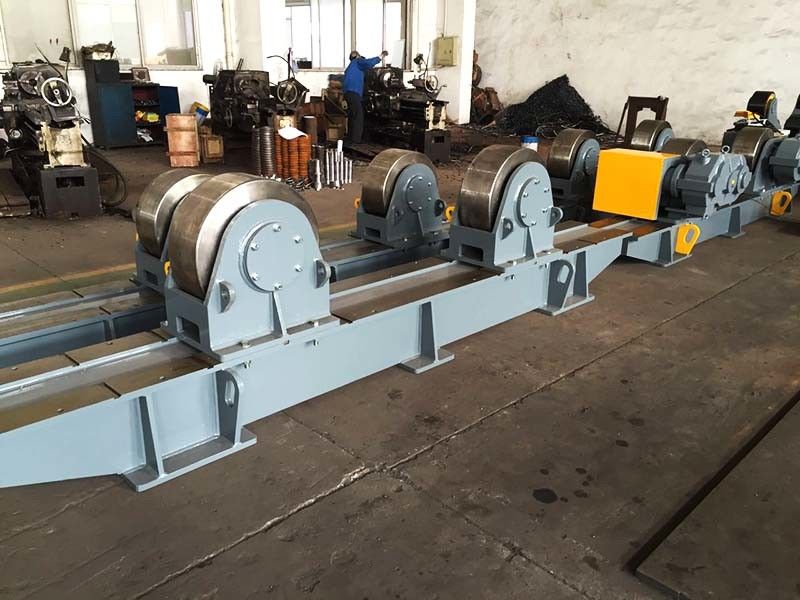

Steel Bed 200 Ton Pipe Welding Rotator Tank Turning Rolls Wireless Control With Metal Roller

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HGK - 200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

heavy duty pipe stands

,

pipe stand roller

Max Capacity:
200 Ton
Adjust Way:
Manual Bolt Adjustment
Motor Power:
Double Motors / 2 * 5 KW
Control Way:
Hand Control Box 5M Cable / Wireless Control
Rorking Range:
Tank Diameter 1000 - 6000 Mm
Delivery Time:
20 Days
Product:
Pipe Welding Rotator
Max Capacity:
200 Ton
Adjust Way:
Manual Bolt Adjustment
Motor Power:
Double Motors / 2 * 5 KW
Control Way:
Hand Control Box 5M Cable / Wireless Control
Rorking Range:
Tank Diameter 1000 - 6000 Mm
Delivery Time:
20 Days
Product:
Pipe Welding Rotator
Steel Bed 200 Ton Pipe Welding Rotator Tank Turning Rolls Wireless Control With Metal Roller

200 Ton Pipe Welding Rotator Tank Turning Rolls Wireless Control With Metal Roller



Pipe Welding Rotator Description



1. Pipe Welding Rotator Package : One powered roller / one idler roller / Electric Control System
2. Pipe Welding Rotator Voltage : 380V 50Hz 3P to Thailand market.
3. Pipe Welding Rotator Roller : Solid Metal
4. Original : Factory , Wuxi China
5. Condition : New



Pipe Welding Rotator / Tank Turning Rolls Detail Parameters



Model

HGK-100

HGK-200

HGK-300

Max Capacity

100 T

200 T

300 T

Roller Diameter (mm)

 500

 700

 800

Roller Width (mm)

 280

  300

Working Range (mm)

   800-5000

1000-6000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*3

2*4

2*5.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment



Pipe Welding Rotator Competitive Advantage


1. The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.

4. Double motors to ensure turing stably.

5. Door to door installation service is also available.



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Pipe Welding Rollers / Pipe Welding Rotator Transportation



1. Firstly , all of our equipments will be packaged in wooden case before delivery.

2. Door to door delivery service is also available , but we have to know your detail address.

3. Seaway is the most common transportation way for oversea trading.

4. Depends on your location, combined transport by rail and sea is also an option.

5. Certainly railway transportation is also acceptable if it is the most suitable approach.



Pipe Welding Rotator Installation



1. Normally the tank turning rolls shipped with fully installation packaged in wooden case.

2. It's easy to installate the Pipe Welding Rotator via our detail drawings supported.

3. We also have engineers supply door to door installation service.

4. We also supply the door to door delivery service if customers interested.



Steel Bed 200 Ton Pipe Welding Rotator Tank Turning Rolls Wireless Control With Metal Roller 0



PLEASE SNED US YOUR INQUIRY FOR MORE INFO NOW.
