Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands

Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands
Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands

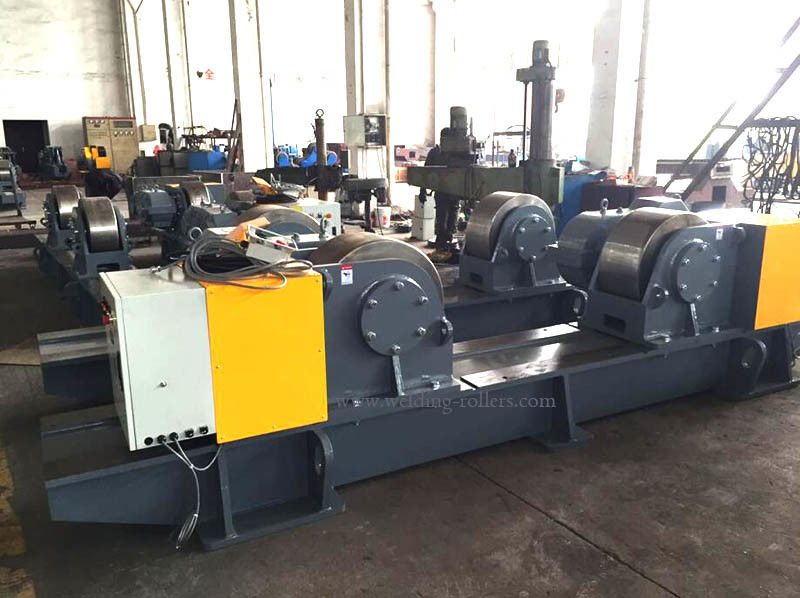

Large Image :  Foot Pedal Control, 160t Bolt Adjustment Heavy Duty Pipe Roller Stands

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 160 Ton Adjust Way: Bolt Adjustment
Name: Pipe Roller Stands Control Way: Hand Control Box 5M Cable / Wireless Control
Rorking Range: Tank Diameter 1000 - 5500 Mm Delivery Time: 20 Days
Motor Power: Double Motors / 2 * 4 KW Product: Pipe Welding Rotator
High Light:

heavy duty pipe stands

,

pipe stand roller

160t Bolt Adjustment Heavy Duty Pipe Roller Stands Foot Pedal Control More products pics.pdf



Pipe Weding Rotator Description



1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 380V 50Hz 3P to Thailand market.
3. Roller : Solid Metal. One powered rolls with two idlers rolls for 20M length tanks.
4. Original : Factory , Wuxi China
5. Condition : New



Pipe Welding Rotator Detail Parameters



Model

HGK-80

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

80 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

 450

 500

 700

 800

 900

Roller Width (mm)

 220

 280

  300

Working Range (mm)

   800-5000

1000-6000

 1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment



Pipe Welding Rotator Application



1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job

5. For Welding, Polishing, Positioning, etc



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Pipe Welding Rotator Transportation



1. Firstly , all of our equipments will be packaged in wooden case before delivery.

2. Door to door delivery service is also available , but we have to know your detail address.

3. Seaway is the most common transportation way for oversea trading.

4. Depends on your location, combined transport by rail and sea is also an option.

5. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service



1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.
