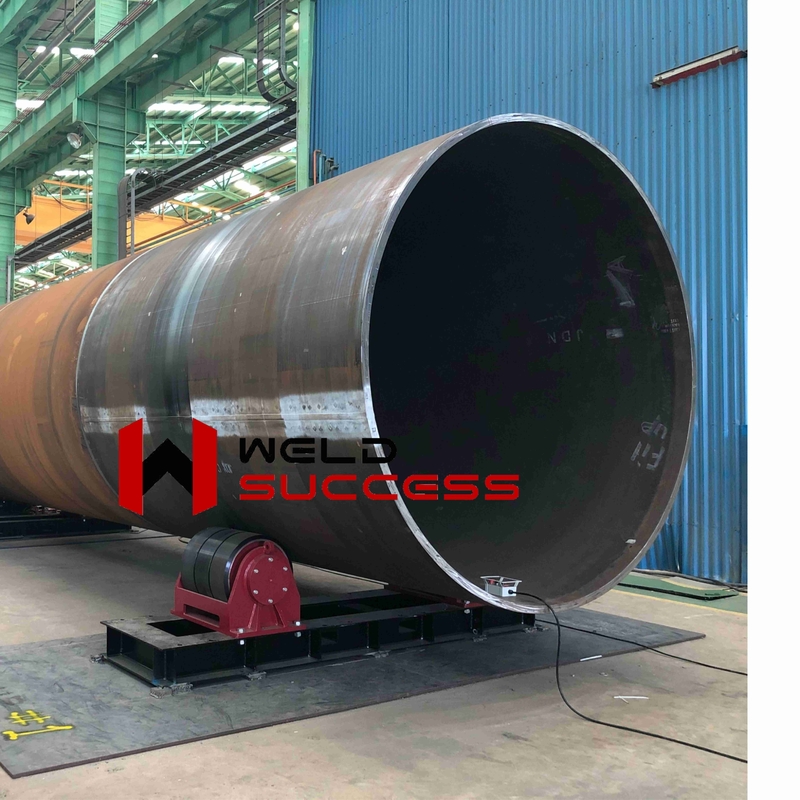

380V Conventional Tank Turning Rolls With Metal Roller , Wireless Hand Control Box

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HGK - 160

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

welding turning rolls

,

pipe welding rollers

Max Capacity:
160 Ton
Adjust Way:
Manual Bolt Adjustment
Equipment:
Tank Turning Rolls
Type:
Pipe Roller Stands
Rorking Range:
Tank Diameter 1000 - 5500 Mm
Control Way:
Hand Control Box 5M Cable / Wireless Control
Motor Power:
Double Motors / 2 * 4 KW
Application:
Pipe Turning Welding And Blasting
Wheel Material:
Steel
Max Capacity:
160 Ton
Adjust Way:
Manual Bolt Adjustment
Equipment:
Tank Turning Rolls
Type:
Pipe Roller Stands
Rorking Range:
Tank Diameter 1000 - 5500 Mm
Control Way:
Hand Control Box 5M Cable / Wireless Control
Motor Power:
Double Motors / 2 * 4 KW
Application:
Pipe Turning Welding And Blasting
Wheel Material:
Steel
380V Conventional Tank Turning Rolls With Metal Roller , Wireless Hand Control Box

380V Conventional Tank Turning Rolls With Metal Roller , Heavy Duty Pressure Vessels, Wind Power Tank, Product line Welding Rotator



Description

1. Package : One powered roller / one idler roller / Electric Control System
2. Voltage : 380V 50Hz 3P to Thailand market.
3. Roller : Solid Metal. One powered rolls with two idlers rolls for 20M length tanks.
4. Original : Wuxi Success Machinery Equipment Co Ltd / Tank turning rolls
5. Condition : 100% New



Attention please

1. Normally we make the tank turning rolls with rubber roller,but according to this customer's request,we make the metal rolls specially.

2. Control system includs remote control,wireless control box,foot pedal and gidital readout turning speed on the electric box.

3. For 20m length heavy tanks,so that we make one powered roller with two idlers rollers for stable using.

4. Fully CE certificate supported to ensure you the greatest quality.



Detail Parameters

Model

HGK-80

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

80 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

 450

 500

 700

 800

 900

Roller Width (mm)

 220

 280

  300

Working Range (mm)

   800-5000

1000-6000

 1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment       □ Lead Screw Adjustment



Competitive Advantage
1. Order form the manufacturer will ensure you get the professional after sales service.

2. If you have any special request,then we will discuss with our engineer to meet you request.

3. With details work manual and drawings to teach you how to operate this.

4. Other capacity tank turning rolls are also available.



Details parts brand

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor with fully CE certificates

3. Cable / Shuntian Reducer is made in China

4. Schneider / Siemens electric system

5. Voltage is 380V 50Hz 3P , or reset as your required

6. All the equipments with one year warranty



Test Before using

1. Have a final inspection of the tank turning rolls before power on.

2. The work piece put at roller, after; observe first a position of work whether seemly? Does the work piece stick to rolleer tightly?. On the work piece whether have the dynamic foreign body which will hinder to revolve.( such as; need not of steel bar ) ,when normal of everything, can to run the machine.

3. Test Emergency Buttons on both the panel and the pendant to ensure functionality.

4. Test all limit switches in both tilt directions, i.e. FWD and RESERVE.

5. Trial run the FWD and REV motions in all directions and observes if there is any unusual noise or smell.


Transportation

1. Firstly , all of our equipments will be packaged in wooden case before delivery.

2. Door to door delivery service is also available , but we have to know your detail address.

3. Seaway is the most common transportation way for oversea trading.

4. Depends on your location, combined transport by rail and sea is also an option.

5. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Installation

1. Normally the tank turning rolls shipped with fully installation packaged in wooden case.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service.

4. We also supply the door to door delivery service if customers interested.
