Small 5000 kg Pipe Welding Rotator 380V pipe turning rolls With Foot Pedal Control

Product Details

Place of Origin: CHN

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: HGK - 5

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 10 Days

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 5 Sets Per Month

Get Best Price
Highlight:

heavy duty pipe stands

,

pipe stand roller

Capacity:
5000 Kg
Tank Diameter:
250 - 2800 Mm
Delivery Time:
10 Days
Package Way:
Wooden Case
Turning Speed:
Digital Readout 1-1000 Mm / Min
Voltage:
380V / 480V 50/60Hz
Product:
Pipe Welding Rotator
Capacity:
5000 Kg
Tank Diameter:
250 - 2800 Mm
Delivery Time:
10 Days
Package Way:
Wooden Case
Turning Speed:
Digital Readout 1-1000 Mm / Min
Voltage:
380V / 480V 50/60Hz
Product:
Pipe Welding Rotator
Small 5000 kg Pipe Welding Rotator 380V pipe turning rolls With Foot Pedal Control

5000 kg Pipe Welding Rotator 380V pipe turning rolls With Foot Pedal Control



We export many equipments to all over the world every year, so that we have many different capacity models welding rotators at stock.



Pipe Welding Rotator / Tank Turning Rolls



  1. One drive & one idler packaged together.
  2. Remote hand control & foot pedal control.
  3. Bolt adjustment / Lead wheels for different diameter vessels.
  4. Stepless adjustable speed of the driven part.
  5. Drive rotation speed in digital readout.
  6. Top-class electronic components from Schneider.
  7. 100% new from original manufacturer
  8. CE marking

Pipe Welding Rotatro / Tank Turning Rolls Premeter



Model

HGK - 5

HGK - 10

HGK - 20

HGK - 40

Max Capacity

5 T

10 T

20 T

40 T

Roller Diameter (mm)

 250

 300

 350

 400

Roller Width (mm)

 140

 170

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment



Pipe Welding Rotator Details parts brand



1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system



Pipe Welding Rotator Rotation Rating



1. The power required to rotate the work must also be considered.

2. The Drive Roll is rated in terms of turning capacity.

3. This rating refers to the power that is produced by the driver, to rotate a smooth-walled, straight-sided circular cylinder.

4. Vessel roundness, irregularities and roll alignment can all affect the rotation power required and must be considered.



Included angle



1. When supporting a load on a set of pipe welding rotator, the distance between the rollers is very important.

2. A balanced symmetrical load should normally have an included angle between 30 degrees and 60 degrees.

3. Although a greater included angle can provide more traction, it also requires additional torque and can stall the drive motor. Small included angles can produce unstable loads and unsafe conditions.

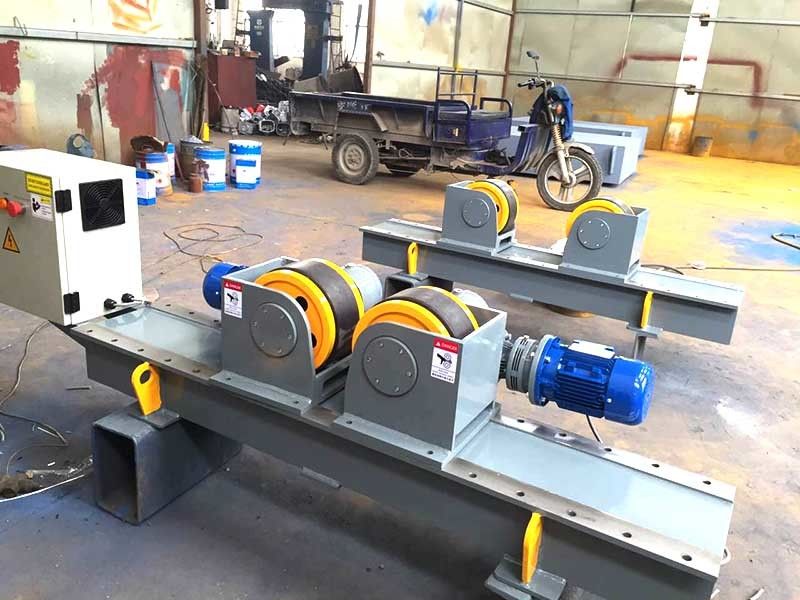

Small 5000 kg Pipe Welding Rotator 380V pipe turning rolls With Foot Pedal Control 0
