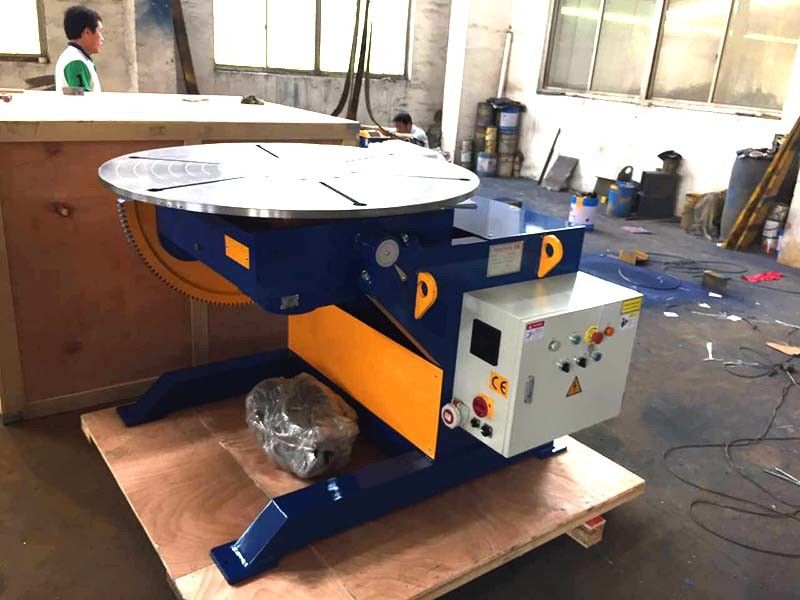

220V Welding Turn Table / welding rotating table CE certificates

220V Welding Turn Table / welding rotating table CE certificates
220V Welding Turn Table / welding rotating table CE certificates 220V Welding Turn Table / welding rotating table CE certificates

Large Image :  220V Welding Turn Table / welding rotating table CE certificates

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBJ - 12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 10 working days after received advance payment
Payment Terms: TT / 30 % payment in advance
Supply Ability: 5 sets per month
Detailed Product Description
Max Capacity: 1200 Kg Application: Pipe Positioning
Production: Welding Positioner Table Diameter: 1200 Mm
Rotation Speed: 0.05 - 0.5 Rpm Delivery Time: 15 Days
Name: Welding Turn Table Tilting Angle: 0 - 90 °
High Light:

rotating display table

,

tilting welding table

220V Welding Turn Table / Welding Rotating Table CE Certificates



Company Info

1. 15 years manufacturer experience.

2. Voltage 220V , 380V or 480V 50/60Hz all available.

3. All welding turn table equipments with CE certificates supported.

4. European agent available.
5. Low voltage hand control pendants



Welding Turn Table Brif Description

1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.

3. Can help for all types of manual welding and auto-welding.

4. Controlled by step-less frequency conversion.

5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.



Specifications

Model

HBJ-03

HBJ-06

HBJ-12

HBJ-30

HBJ-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

1000

1200

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal           □ Wireless Control         □ Tilting Angle 120°






















How To Select A Gear Driven Welding Turn Table Positioner To Best Meet Your Needs

1. Before you proceed the order,pls discuss with our sales together.

2. We will design the positioner according to your work piece weight.



Tilt Torque Load

1. To find your weldments' Tilt Torque Load, add the Inherent Overhang (Inches) to the distance (Inches) the weldments' CG is from the table top surface.

2. This is measured perpendicular to the table top surface. then multiply this total distance in Inches by the weight of the weldment.

3. Do not exceed the maximum load torque shown in the "tilt" column on next page.



Rotation Torque Load

1. To find your weldments' Rotation Torque Load, multiply the weldment weight in Pounds by the distance in inches that Center-of-Gravity (CG) will be from the center of the table.

2. This measurement is taken parallel to the table surface. Do not exceed the maximum load torque shown in the "rotation" column.



How About Swing Clearance

1. When selecting a welding turn table, don't forget to leave clearance to swing the work above the floor when the table is in the full tilt position.

2. This is a common error in specifying positioners. For excessive work-pieces, aronson positioners are available with manually adjustable bases, or powered Elevating bases which adjust the table height for larger work.

3. Fixed-base machines also can be elevated by using a riser or sub-base.



After sale service

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.
